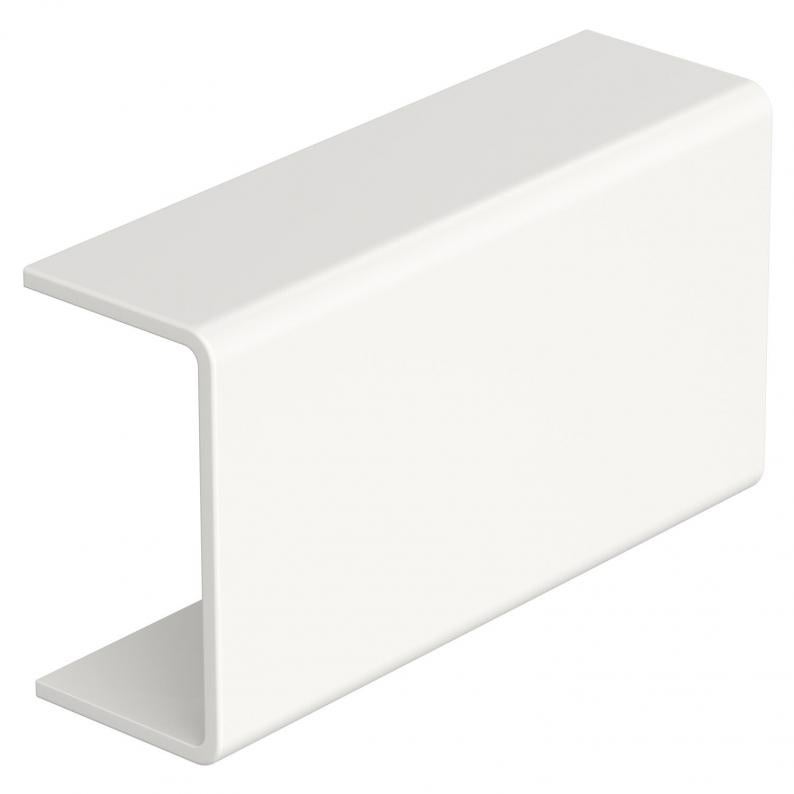

Joint cover, for trunking, type WDK 13025

Joint cover, for trunking, type WDK 13025

Type WDK HS13025RW
Item no. 6193498
EAN 4012195959069
Show all variants
Item no. / Type
Colour

Smallest selling unit: 20 piece

piece

Description

Joint cover for perfect connection of the WDK trunking segments, type 13025. Incl. coupling for the raised trunking floor.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

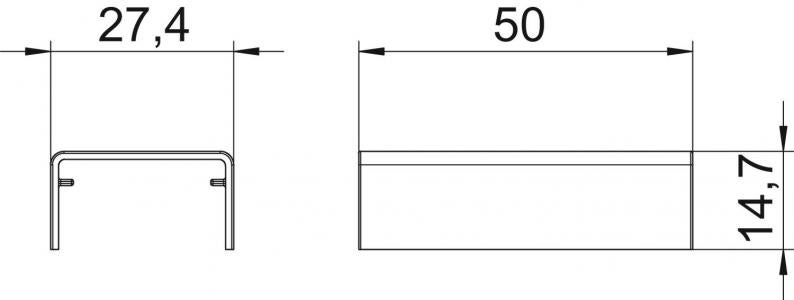

Dimensions

Length50 mm
Width27,4 mm
Height14,7 mm

Technical data

Halogen-freeno
Protection ratingIP30
Protection rating IK codeIK04
ShapeSymmetrical
Version forTrunking cut cover
Fastening typeLockable
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension15x27x50mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Product seriesWDK

Environmental Data

0,0701 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,0701 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0701 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (3)
Product images (2)
Tender specifications (1)

Variants

Colour
WDK HS13025PW
Item no.
6193496
Colour
Oyster white; RAL 1013
WDK HS13025RW
Item no.
6193498
Colour
Pure white; RAL 9010
