Joint connector set, duct height 120 mm
Type PLM SIC 1220 FS
|Item no. 7218033
|EAN 4012197450991
Item no. / Type
7218033 / PLM SIC 1220 FS
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

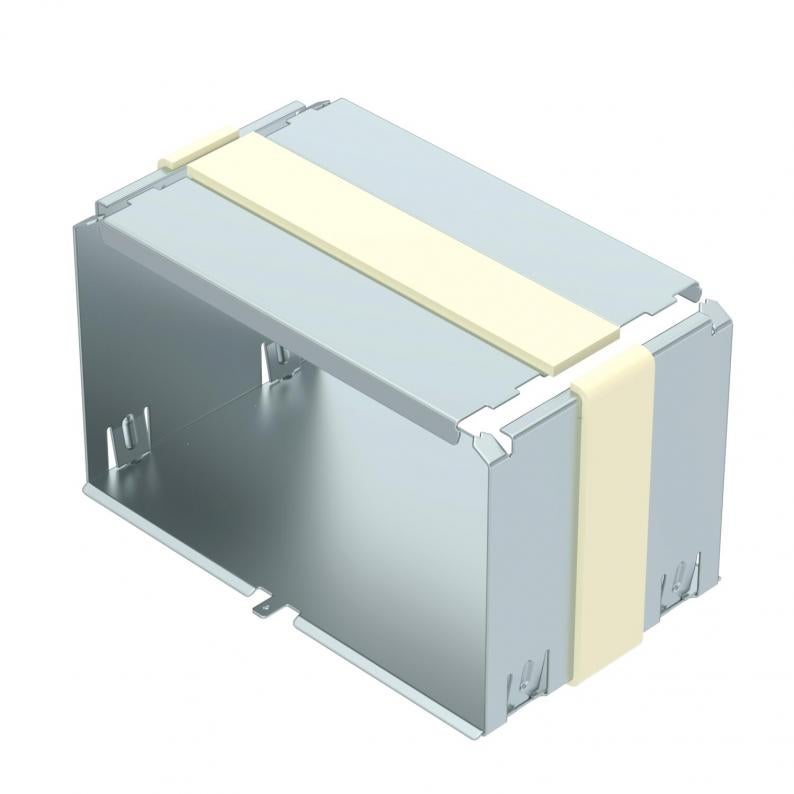

Joint connector set, consisting of a connector for the duct base and cover support. With integrated seal for toolless connection of the PYROLINE® Rapid PLM installation duct and fittings. Allows continuous connection of the protective conductors.
Technical data

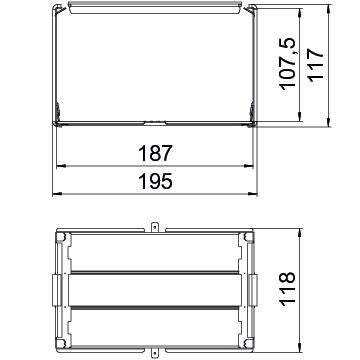

Dimensions
| Length | 118 mm |
|---|---|
| Width | 195 mm |
| Height | 117 mm |
| Dimension L | 118 mm |
| Dimension H | 117 mm |
| Internal height | 107,5 mm |
| Internal width | 187 mm |
| Dimension W | 195 mm |
Technical data
| Jacketing | Without |
|---|---|
| Suitable for outdoor use | no |
| ROHS-conformant | yes |
| Classification EI − installation duct | 90 |
| Dimension | 118x194x118 |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Fire protection class to EN 13501-2 | EI90 |
