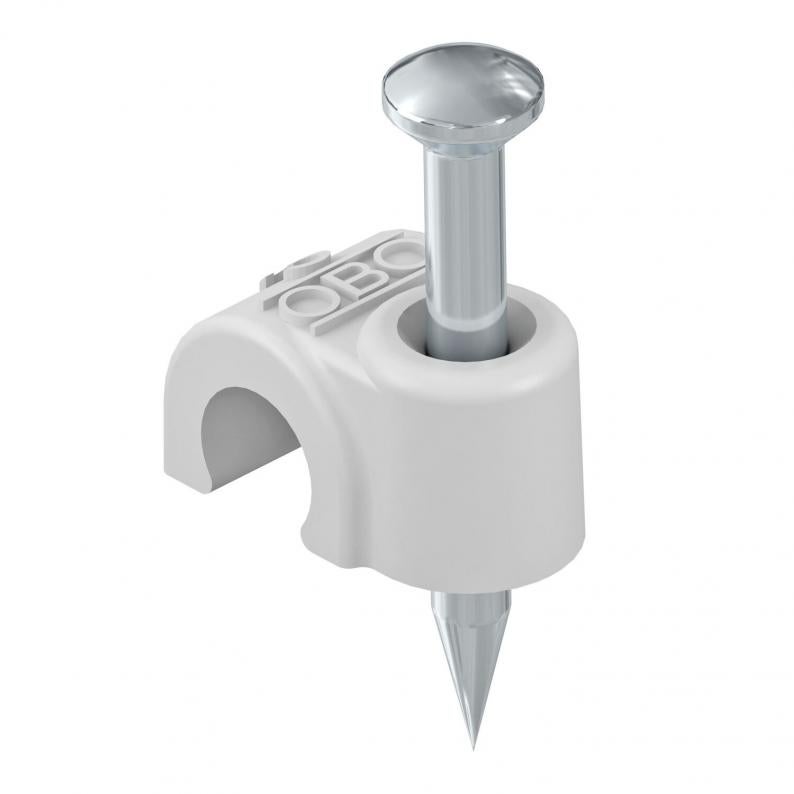

ISO nail clip 2012, light grey

ISO nail clip 2012, light grey

Type 2012 45 LGR SO
Item no. 2232842
EAN 4012195519430
Show all variants
Item no. / Type
for cable diameter
Nail length
For nail diameter

Smallest selling unit: 150 piece

piece

Description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

Technical data

for cable diameter12 mm
Impact-resistantno
Halogen-freeyes
Hardenedyes
Double clipno
With nailyes
Nail length45 mm
For nail diameter2,0x45
Transparentno
ShapeRound (for round conductor)
ROHS-conformantyes
Dimension12mm, L45
MaterialPolypropylene
ColourLight grey; RAL 7035
Pipe lockingno
Product seriesCable and pipe fastening

Dimensions

Dimension L19,8 mm
Dimension B9 mm
Dimension H14,8 mm

Environmental Data

0,0058 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate0,0058 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0058 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Product images (4)
Tender specifications (1)

Variants

Nail length
For nail diameter
2012 35 LGR
Item no.
2228025
for cable diameter
12
Nail length
35
For nail diameter
2,0x35
Colour
Light grey; RAL 7035
2012 45 LGR
Item no.
2228033
for cable diameter
12
Nail length
45
For nail diameter
2,0x45
Colour
Light grey; RAL 7035
2012 35 LGR SO
Item no.
2232839
for cable diameter
12
Nail length
35
For nail diameter
2,0x35
Colour
Light grey; RAL 7035
2012 45 LGR SO
Item no.
2232842
for cable diameter
12
Nail length
45
For nail diameter
2,0x45
Colour
Light grey; RAL 7035
