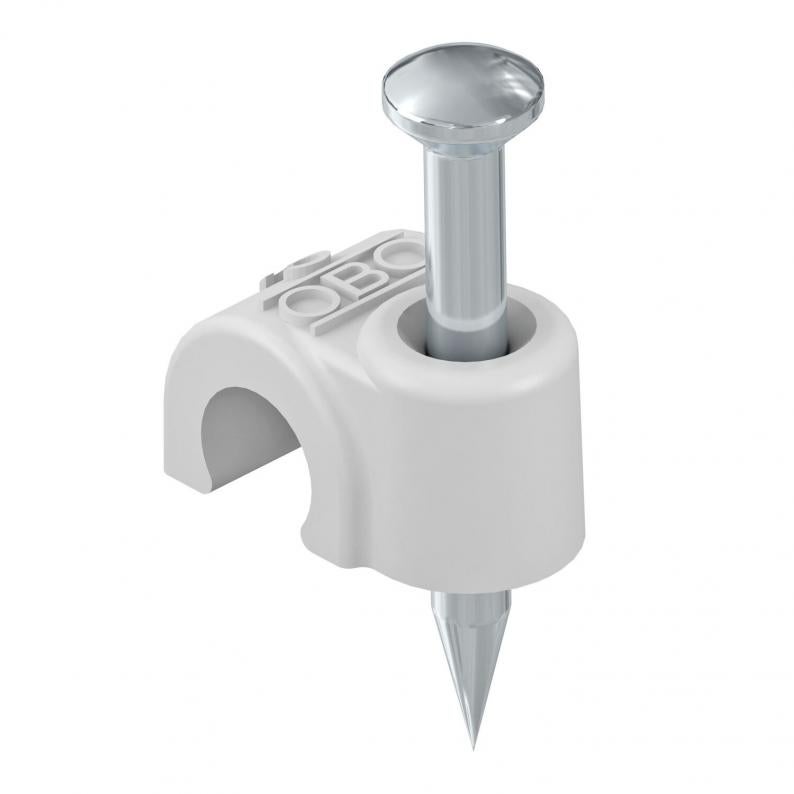

ISO nail clip 2010, light grey

ISO nail clip 2010, light grey

Type 2010 45 LGR
Item no. 2227827
EAN 4012195218470
Show all variants
Item no. / Type
for cable diameter
Nail length
For nail diameter

Smallest selling unit: 100 piece

piece

Description

ISO nail clip, short design
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Technical data

for cable diameter10 mm
Impact-resistantno
Halogen-freeyes
Hardenedyes
Double clipno
With nailyes
Nail length45 mm
For nail diameter2,0x45
Transparentno
ShapeRound (for round conductor)
ROHS-conformantyes
Dimension10mm, L45
MaterialPolypropylene
ColourLight grey; RAL 7035
Pipe lockingno
Product seriesNagel-Fix

Dimensions

Dimension L17,7 mm
Dimension B8 mm
Dimension H12,7 mm

Environmental Data

0,0059 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0059 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0059 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (4)
Tender specifications (1)

Variants

Nail length
For nail diameter
2010 25 LGR
Item no.
2227800
for cable diameter
10
Nail length
25
For nail diameter
2,0x25
Colour
Light grey; RAL 7035
2010 35 LGR
Item no.
2227819
for cable diameter
10
Nail length
35
For nail diameter
2,0x35
Colour
Light grey; RAL 7035
2010 45 LGR
Item no.
2227827
for cable diameter
10
Nail length
45
For nail diameter
2,0x45
Colour
Light grey; RAL 7035
2010 35 LGR SO
Item no.
2232830
for cable diameter
10
Nail length
35
For nail diameter
2,0x35
Colour
Light grey; RAL 7035
2010 45 LGR SO
Item no.
2232834
for cable diameter
10
Nail length
45
For nail diameter
2,0x45
Colour
Light grey; RAL 7035
