isFang support for wall mounting, 200−300 mm spacing
Type isFang TW200
Item no. 5408954
EAN 4012195670094
Item no. / Type
5408954 / isFang TW200
Length
322 mm
Smallest selling unit: 2 piece
2piece
piece
Description

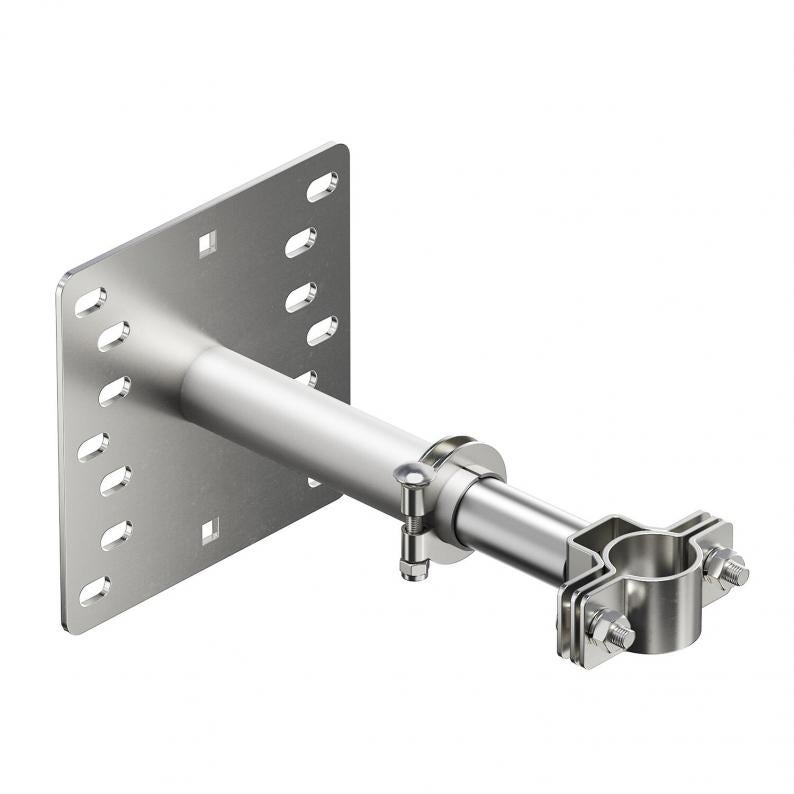

• To fasten the insulated support pipes on the structure to be protected or on the wall
Technical data

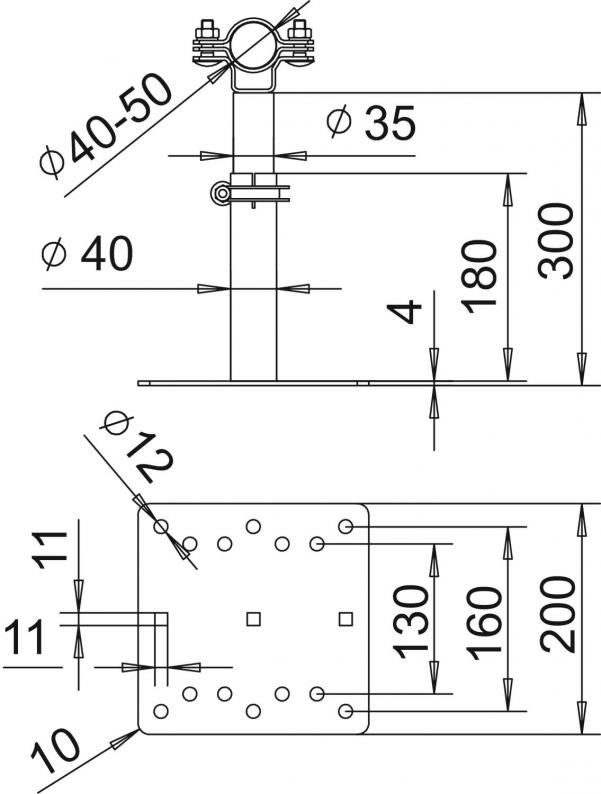

Dimensions
| Length | 322 mm |
|---|---|
| Width | 200 mm |
| Height | 200 mm |
| Dimension L | 300 mm |
Technical data
| ROHS-conformant | yes |
|---|---|
| Dimension | 200-300mm |
| Material | Stainless steel 1.4301 |
| Product series | ISCON |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
