Internal corner BRA IE 70110

Internal corner BRA IE 70110

Type BRA IE70110 EL
Item no. 6133276
EAN 4012196735372
Show all variants
Item no. / Type
6133276 / BRA IE70110 EL
Colour
aluminium

Smallest selling unit: 1 piece

piece

Description

Internal corner as a fitting for changing the direction of the Signa Style device installation trunking.

Cut-concealing.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

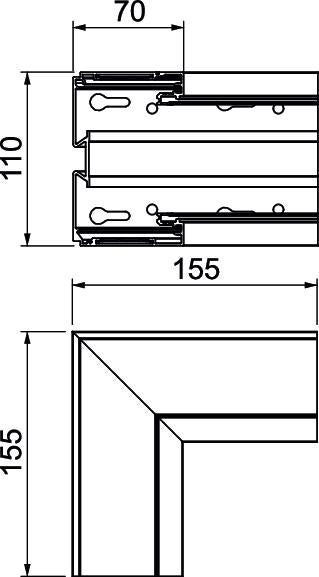

Dimensions

Length155 mm
Width110 mm
Height70 mm

Technical data

Mounting perforation in baseyes
for duct dimension70x110
Halogen-freeyes
Cable retaining clipno
Protective filmyes
Duct connectorno
Angle range, min.90 mm
Protection ratingIP30
Number of covers1
Cover mounting typeInternal
Protection rating IK codeIK07.
for duct width110 mm
for trunking height70 mm
Version forBase
ShapeAsymmetrical
ROHS-conformantyes
Cover width79 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension70x110x155
SurfaceAnodised
MaterialAluminium
Colouraluminium
Antibacterial treatmentno
Product seriesSigna Style

Environmental Data

11,0677 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate11,0677 kg CO2e / 1 Piece
CO₂ Footprint (GWP)11,0677 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
