Insulated air-termination rod for inner-routed isCon® conductor

Insulated air-termination rod for inner-routed isCon® conductor

Type isFang IN L8
Item no. 5408858
EAN 4012196647866
Show all variants
Item no. / Type
Length

Smallest selling unit: 1 piece

piece

Description

• For routing OBO isCon® conductors in pipes
• For installation on the building structure with isFang support
• Suitable for wind loads according to Eurocode 1: DIN EN 1991-1-4
• Tested according to VDE V 0185-561-8 (IEC TS 62561-8)

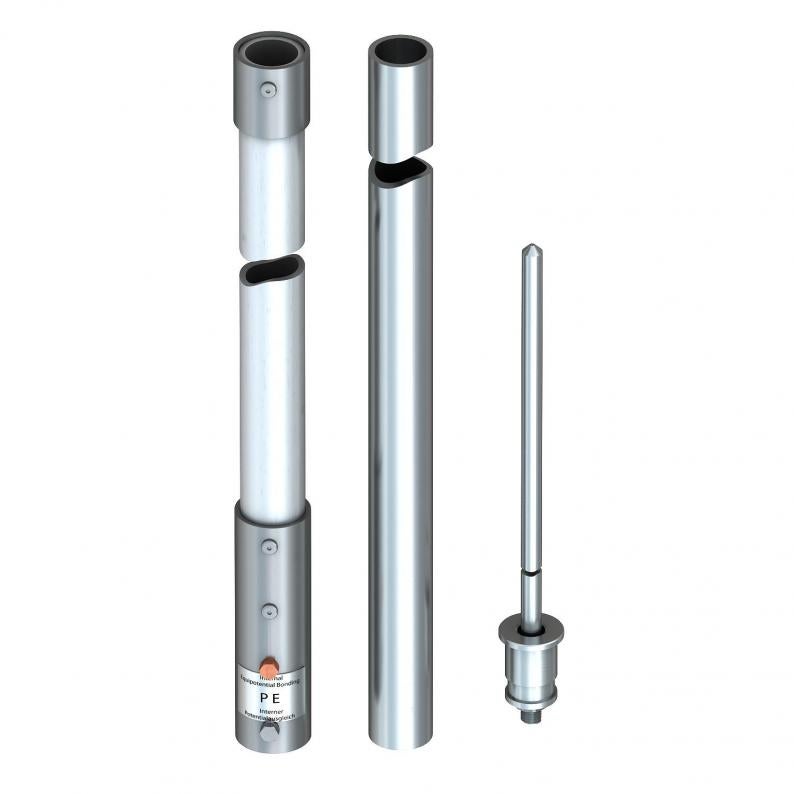

• Aluminium standpipe and air-termination tip
• Centre section made of fibre-glass reinforced plastic (GRP)
  • Lightning current-tested
  • CO₂ footprint (PCF)

Technical data

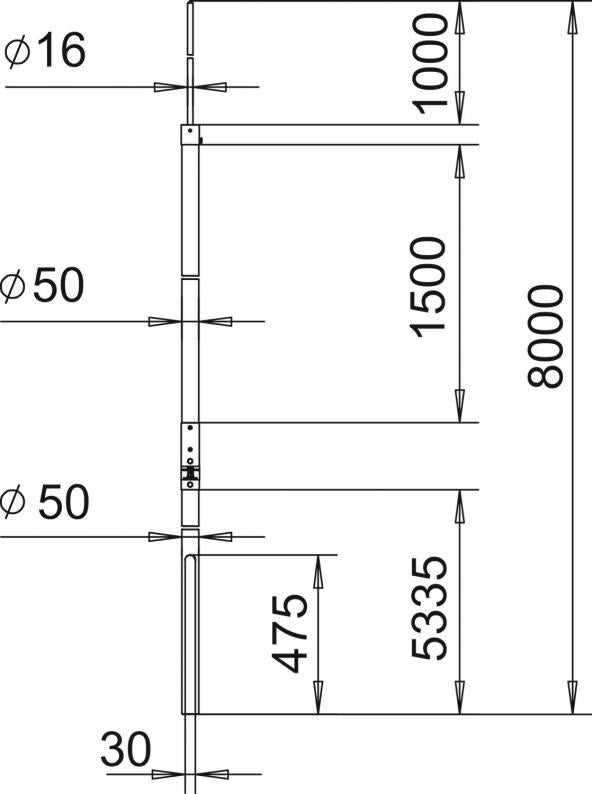

Dimensions

Length8000 mm
Dimension L8000 mm
Dimension A5335 mm
Dimension B1000 mm
Dimension H1500 mm
Dimension d min.50 mm

Technical data

High voltage-resistant, insulated versionyes
ConnectionRound conductor
Version forAir-termination rod
ROHS-conformantyes
Dimension8000mm
MaterialFibre-glass-reinforced plastic
Product seriesISCON

Environmental Data

122,0643 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate122,0643 kg CO2e / 1 Piece
CO₂ Footprint (GWP)122,0643 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Accessories

System accessories
Type
F-FIX-S16

Smallest selling unit: 1 piece

piece

Type
F-FIX-B16 3B

Smallest selling unit: 10 piece

piece

Type
isCon Pro 75 SW

Smallest selling unit: 100 m

m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Length
isFang IN L4
Item no.
5408854
Length
4000
isFang IN L6
Item no.
5408856
Length
6000
isFang IN L8
Item no.
5408858
Length
8000
isFang IN L10
Item no.
5408860
Length
10000
