HW Compensation ring 20

HW Compensation ring 20

Type ZH 20-AR
|
Item no. 2003844
|
EAN 4012196714698
Show all variants
Item no. / Type
2003844 / ZH 20-AR

Smallest selling unit: 25 piece

piece

Description

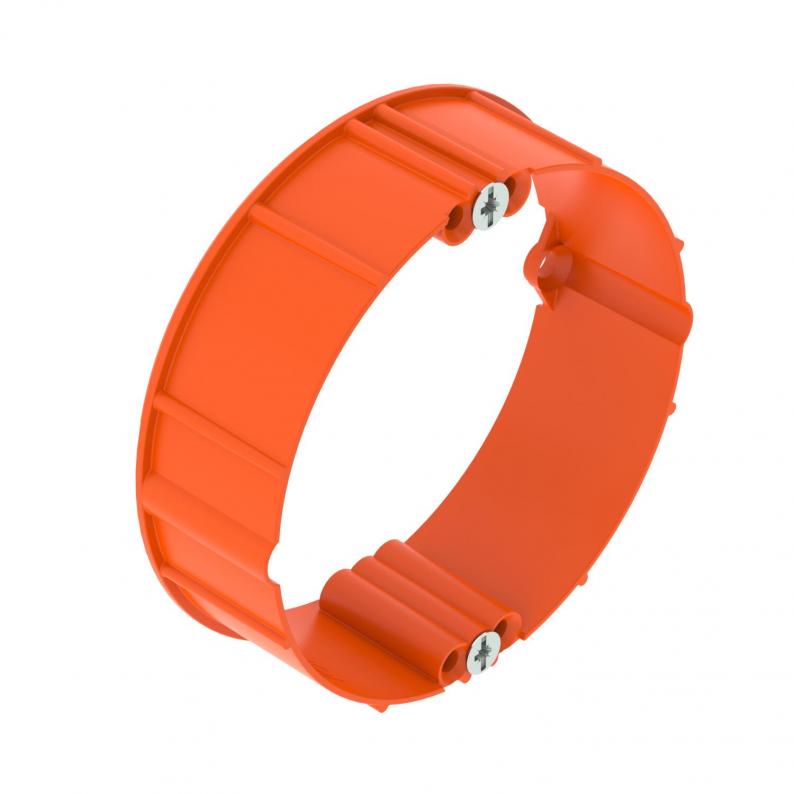

Compensation ring for cavity wall device box Ø 68 mm, to screw on.
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • RoHS-conformant
  • Diameter 68 mm
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Height20 mm

Technical data

Impact-resistantno
Accessory screw clearance60 mm
Diameter68 mm
Halogen-freeyes
With boltsyes
ROHS-conformantyes
Flame-resistantAcc. to VDE 0471/IEC 60695-2-11, test temperature 850°C

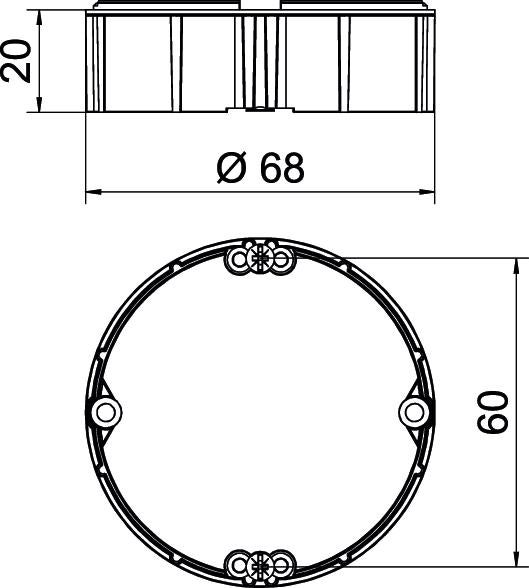

DimensionØ68mm, H20mm
MaterialPolypropylene
ColourOrange
Product seriesWIN Series

Environmental Data

0,0262 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,0262 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0262 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

ZH 20-AR
Item no.
2003844
