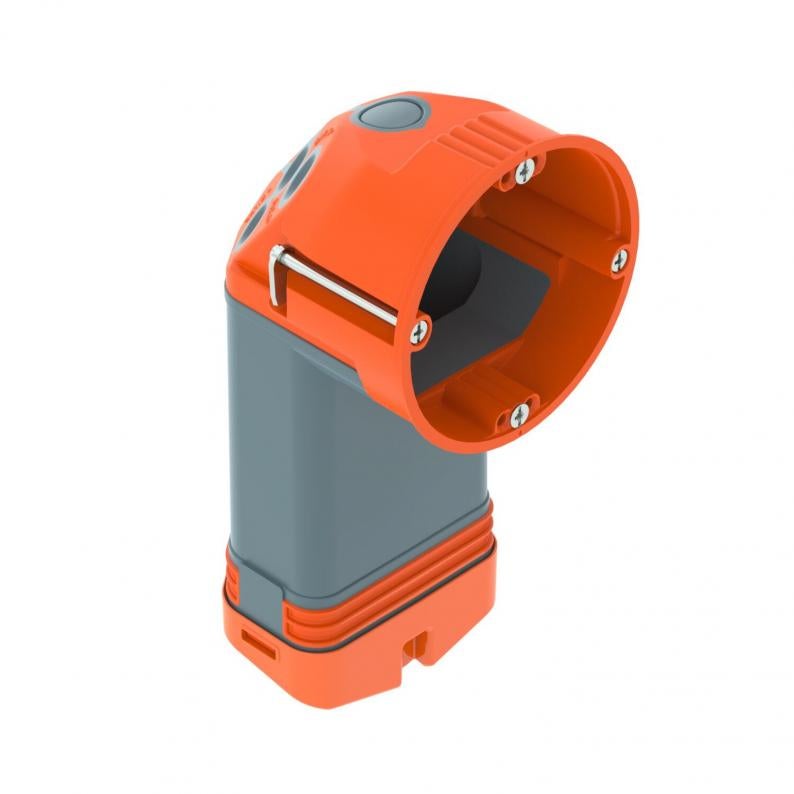

HW Cavity wall electronic box 74, airtight, with elastomer sack
Type HE 74-L
|Item no. 2003828
|EAN 4012197276676
Item no. / Type
2003828 / HE 74-L
Height
77 mm
Milling hole diameter
68 mm
Diameter
68 mm
No. of entries
8
for pipe diameter
20/25 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Cavity wall electronic box with membrane entries for additional wiring space, for use in cavity walls with an installation depth of at least 75 mm and a plate thickness of 5-35 mm.
• 2 x 3 screw domes
• Device screws, clamping straps
• 2 entries for NYM cables 3 x 1.5 mm²
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• 2 combination pipe entries Ø 20 and 25 mm in the bottom area of the wiring space
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
• 2 x 3 screw domes
• Device screws, clamping straps
• 2 entries for NYM cables 3 x 1.5 mm²
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• 2 combination pipe entries Ø 20 and 25 mm in the bottom area of the wiring space
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
Technical data

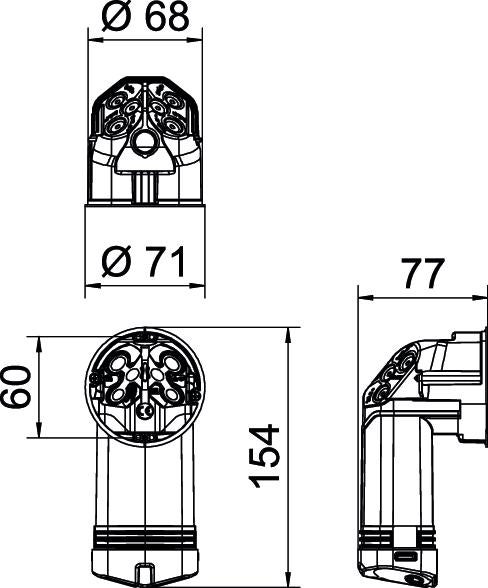

Dimensions
| Length | 154 mm |
|---|---|
| Width | 71 mm |
| Height | 77 mm |
Technical data
| Impact-resistant | no |
|---|---|
| Number of switch boxes | 1 |
| Milling hole diameter | 68 mm |
| Suitable for plate thickness, min. | 5 mm |
| Suitable for plate thickness, max. | 35 mm |
| Cover screw clearance | 61 mm |
| Diameter | 68 mm |
| Halogen-free | yes |
| No. of entries | 8 |
| Device fixing | Screws , |
| Protection rating | IP30 |
| Type of housing penetration | Insertion membrane |
| for pipe diameter | 20/25 mm |
| With bolts | yes |
| Airtight | yes |
| Support | Connector |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Shape | Miscellaneous |
| Cover fastening | Screws , |
| ROHS-conformant | yes |
| Flame-resistant | Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C |
| Combination entries Ø 20 / 25 mm | 2 |
| Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² | 2 |
| Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² | 2 |
| Cable entries 3 x 1.5 mm² | 2 |
| Material | Polypropylene / Thermoplastic elastomer |
| Colour | orange / grey |
| Rated voltage | 400 V |
| Product series | WIN Series |
Environmental Data
0,2212 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2212 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2212 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
