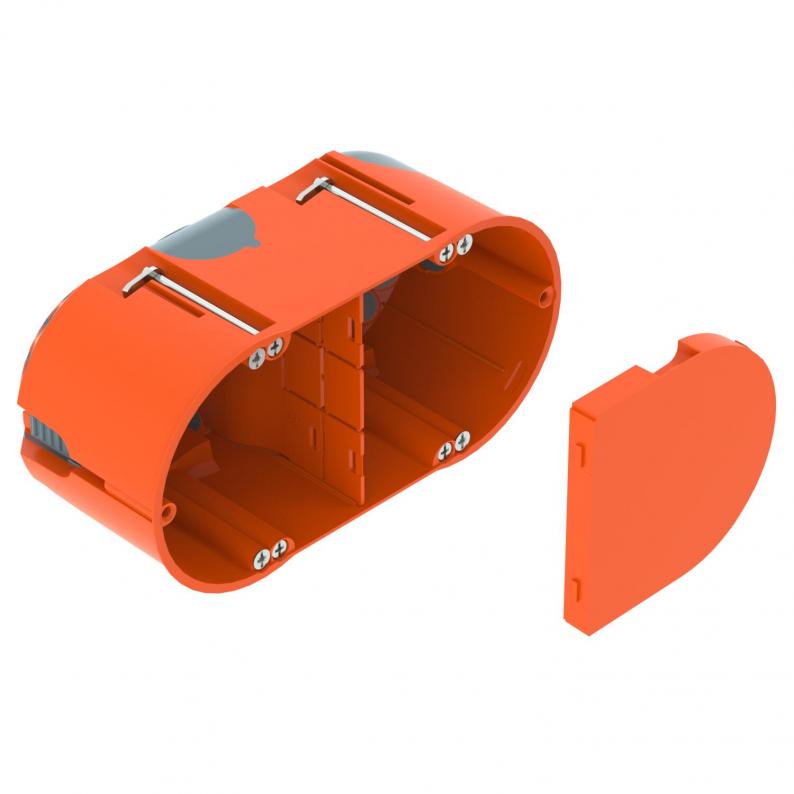

HW Cavity wall electronic box 61, airtight
Type HE 61-DV-L
|Item no. 2003826
|EAN 4012196865499
Item no. / Type
2003826 / HE 61-DV-L
Height
61 mm
Milling hole diameter
68 mm
No. of entries
14
for pipe diameter
20/25 mm
Smallest selling unit: 10 piece
10piece
piece
Description
Cavity wall electronic box with membrane entries, cover and partition, for use in cavity walls with an installation depth of at least 61 mm and a plate thickness of 5–40 mm.
• 6 screw domes
• Device screws, clamping straps
• 4 combination pipe entries of Ø 20 and 25 mm
• 4 entries for NYM cables 3 x 1.5 mm²
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• Airtight connection with other device boxes via connector, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
• 6 screw domes
• Device screws, clamping straps
• 4 combination pipe entries of Ø 20 and 25 mm
• 4 entries for NYM cables 3 x 1.5 mm²
• 2 entries for NYM cables 3 x 2.5 mm² or 5 x 1.5 mm²
• 2 entries for NYM cables 5 x 2.5 mm² or 7 x 1.5 mm²
• Airtight connection with other device boxes via connector, type ZH 11-V
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
Technical data
Dimensions
| Length | 142 mm |
|---|---|
| Width | 71 mm |
| Height | 61 mm |
Technical data
| Impact-resistant | no |
|---|---|
| Number of switch boxes | 2 |
| Milling hole diameter | 68 mm |
| Suitable for plate thickness, min. | 5 mm |
| Suitable for plate thickness, max. | 40 mm |
| Accessory screw clearance | 61 mm |
| Halogen-free | yes |
| No. of entries | 14 |
| Device fixing | Screws , |
| Protection rating | IP30 |
| Type of housing penetration | Insertion membrane |
| for pipe diameter | 20/25 mm |
| With bolts | yes |
| Airtight | yes |
| Support | Connector |
| Nominal cross-section, min. | 1,5 mm² |
| Nominal cross-section, max. | 2,5 mm² |
| Shape | Oval |
| Cover | Orange |
| Cover fastening | Locking |
| ROHS-conformant | yes |
| Flame-resistant | Acc. to VDE 0471/IEC 60695-2-11, test temperature 850°C |
| Combination entries Ø 20 / 25 mm | 4 |
| Cable entries 3 x 2.5 mm² / 5 x 1.5 mm² | 2 |
| Cable entries 5 x 2.5 mm² / 7 x 1.5 mm² | 2 |
| Cable entries 3 x 1.5 mm² | 4 |
| Cable entries for low voltages | 2 |
| Dimension | 142x71 |
| Material | Polypropylene / Thermoplastic elastomer |
| Colour | orange / grey |
| Rated voltage | 400 V |
| Product series | WIN Series |
Environmental Data
0,2004 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2004 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2004 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
