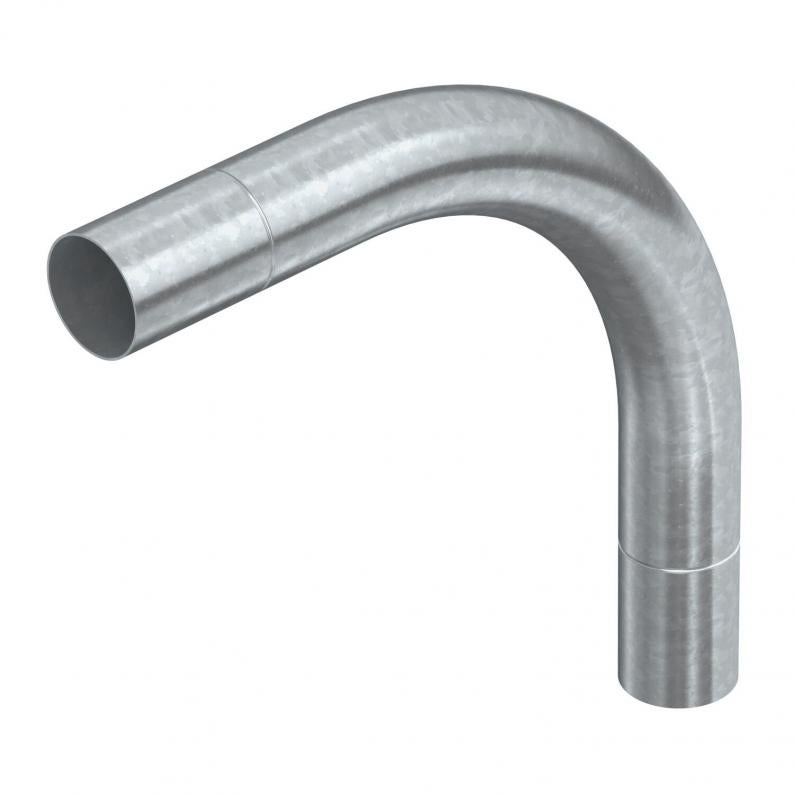

Hot-dip galvanised steel bend, without thread

Hot-dip galvanised steel bend, without thread

Type SBN63 FT
Item no. 2046822
EAN 4012196388059
Show all variants
Item no. / Type
For nominal pipe diameter

Smallest selling unit: 3 piece

piece

Description

90° bend with moulded sleeves, for electrical installation pipes according to EN 61386-1. With burr-free inner wall.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E90
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

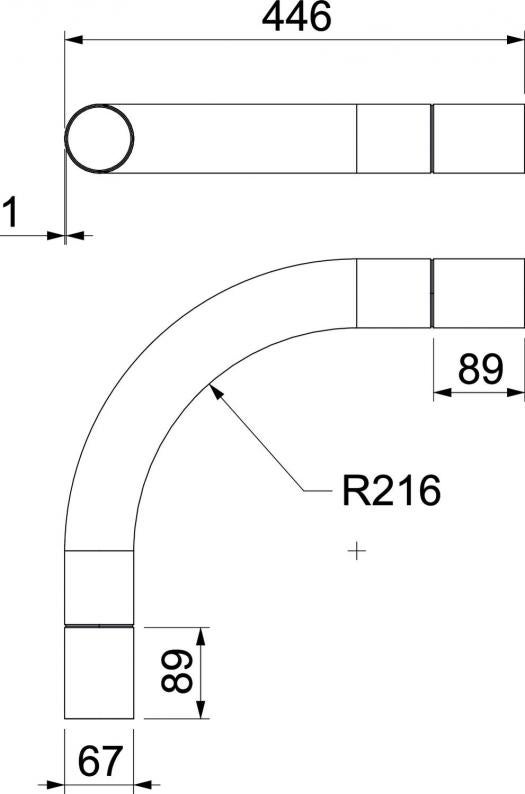

Dimensions

Dimension A163 mm
Dimension d64 mm
Dimension B446 mm
Dimension t1,5 mm
Dimension m (mm)M63
Dimension l90 mm
Dimension R250 mm
Dimension D67 mm

Technical data

Halogen-freeno
Angle of the bend90 °
Polished surfaceno
With sleeveyes
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partno
For nominal pipe diameter63 mm
Version forConnector
ROHS-conformantyes
Permitted temperature range, min.-45 °C
Permitted temperature range, max.400 °C
DimensionØ63mm
SurfaceHot-dip galvanised
MaterialSteel
Product seriesMetal pipes

Environmental Data

4,1601 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate4,1601 kg CO2e / 1 Piece
CO₂ Footprint (GWP)4,1601 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

For nominal pipe diameter
SBN16 FT
Item no.
2046816
For nominal pipe diameter
50
SBN20 FT
Item no.
2046817
For nominal pipe diameter
20
SBN25 FT
Item no.
2046818
For nominal pipe diameter
25
SBN32 FT
Item no.
2046819
For nominal pipe diameter
32
SBN40 FT
Item no.
2046820
For nominal pipe diameter
40
SBN50 FT
Item no.
2046821
For nominal pipe diameter
50
SBN63 FT
Item no.
2046822
For nominal pipe diameter
63
