Hexagonal bolt M12 A2

Hexagonal bolt M12 A2

Type SKS 12x110 A2
Item no. 6418376
EAN 4012196204670
Show all variants
Item no. / Type
Dimension L
Dimension d

Smallest selling unit: 20 piece

piece

Description

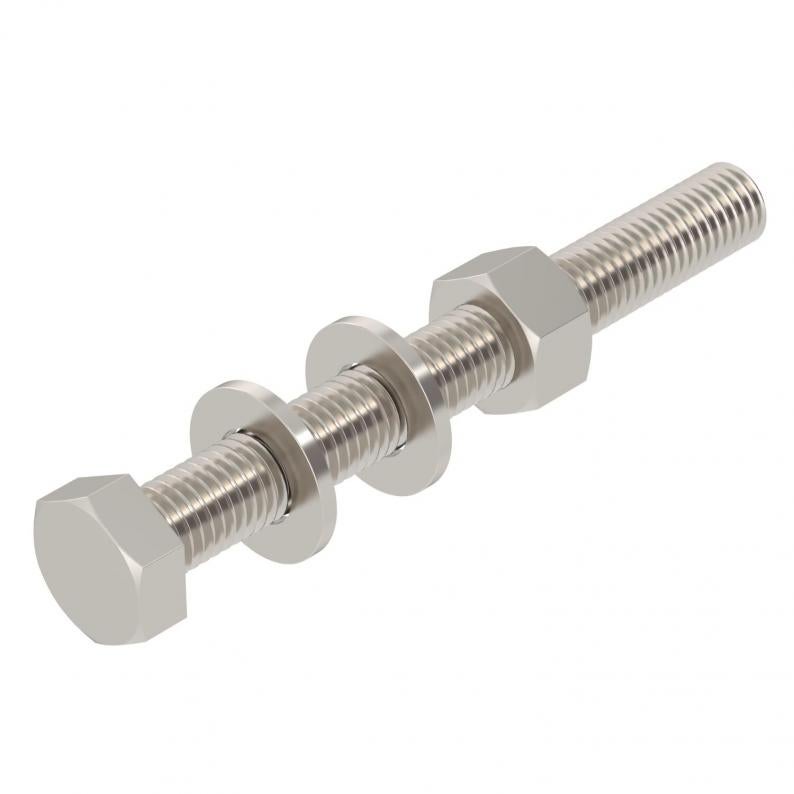

Hexagonal bolt for universal fastening of construction components. With hexagonal nut and 2 washers.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

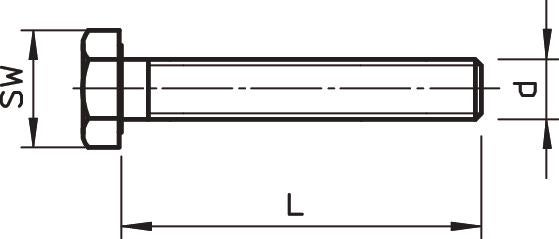

Dimensions

Length110 mm
Dimension L110 mm
Dimension d12 mm

Technical data

Thread metric12
ThreadM 12 x 110
Resistance gradeA2-70
With washeryes
With nutyes
Self-lockingno
Thread increase1,75 mm
With flangeno
WAF19
Screw systemHexagonal
Full threadyes
ROHS-conformantyes
Thread length110 mm
Thread typeMetric
DimensionM12x110
SurfaceBright, treated
MaterialStainless steel 1.4301
Colourstainless steel
Left threadno

Environmental Data

0,6528 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,6528 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,6528 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Dimension L
SKS 12x80 A2
Item no.
6418279
Dimension L
80
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel 1.4301
SKS 12x100 A2
Item no.
6418368
Dimension L
100
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel 1.4301
SKS 12x110 A2
Item no.
6418376
Dimension L
110
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel 1.4301
