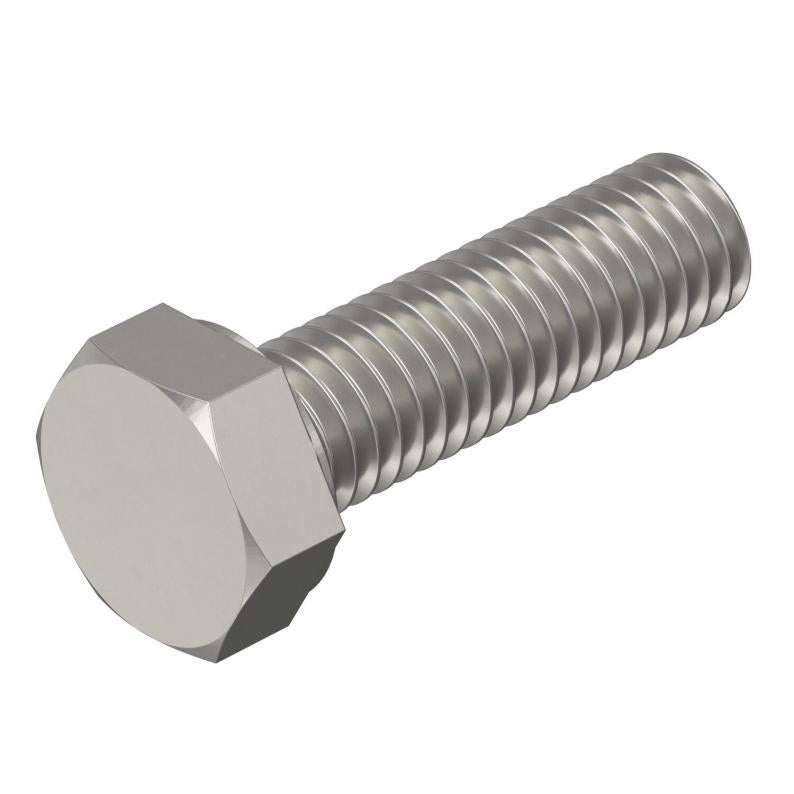

Hexagonal bolt DIN 933 A5

Hexagonal bolt DIN 933 A5

Type HHS M12x40 A5
Item no. 3156067
EAN 4012195940876
Show all variants
Item no. / Type
Dimension L
Thread metric
Dimension d
WAF

Smallest selling unit: 50 piece

piece

Description

Hexagonal bolt M12x40
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

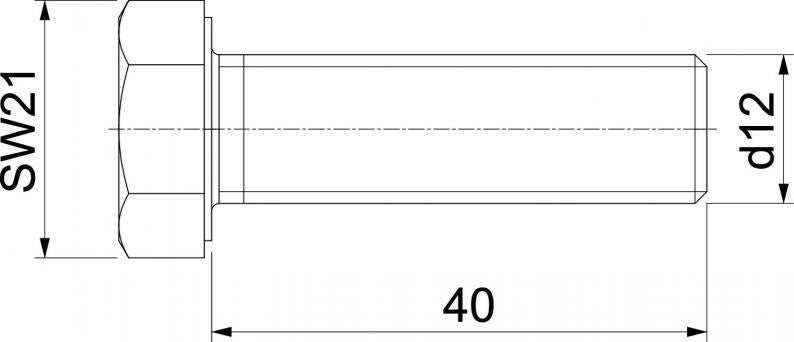

Dimensions

Length40 mm
Dimension L40 mm
Dimension d12 mm

Technical data

Thread metric12
ThreadM12
With washerno
With nutno
Self-lockingno
With flangeno
WAF19
Screw systemHexagonal
Full threadyes
ROHS-conformantyes
Thread length40 mm
Thread typeMetric
DimensionM12x40mm
MaterialStainless steel
Left threadno
Product seriesBolts and hooks

Environmental Data

0,2156 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2156 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2156 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (2)
Product images (3)
Tender specifications (1)

Variants

Dimension L
Thread metric
Dimension d
WAF
HHS M8x20 A5
Item no.
3156054
Dimension L
20
Thread metric
8
Dimension d
8
WAF
13
Material
Stainless steel
HHS M10x30 A5
Item no.
3156062
Dimension L
30
Thread metric
10
Dimension d
10
WAF
17
Material
Stainless steel
HHS M12x40 A5
Item no.
3156067
Dimension L
40
Thread metric
12
Dimension d
12
WAF
19
Material
Stainless steel
