Height-adjustable, decouplable cassette for inspection opening, stainless steel
Type TRKN 9 VS 350
Item no. 7409621
EAN 4012197438616
Item no. / Type
Floor height, min.
Floor covering thickness
Dimension h
Smallest selling unit: 1 piece
1piece
piece
Description

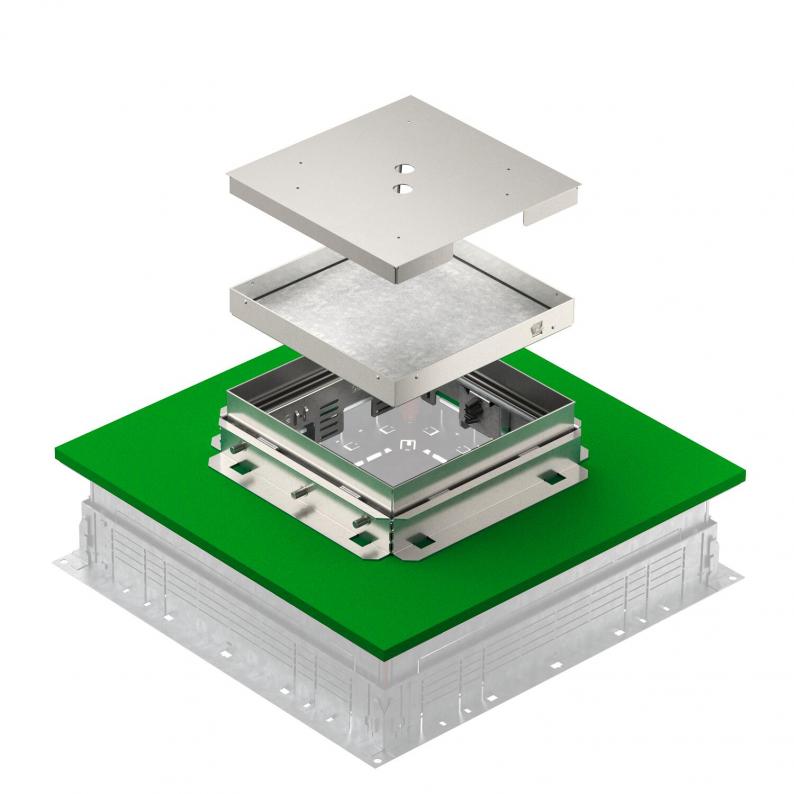

Height-adjustable and decouplable square cassette for floor-flush and seamless device installation in underfloor connection boxes UZD 350-4 (minimum installation depth 161 mm)/UGD55 350-3 (minimum installation depth 136 mm). Suitable for all cement screeds. Cassette frame with integrated lined body and height-adjustment function. The height of the cassette frame is adjusted to the top edge of the floor covering using four slots. Suitable for dry-, moist- or wet-cleaned floors. The cassette is fixed in the mounting cover by fastening brackets during screed/Terrazzo work and is decoupled in all directions in the installed state. The cassette frame is made of stainless steel with a 25 mm-deep floor covering recess in the lid. Only suitable for smooth floor coverings.
Height-adjustable cassette with blanking cover. The scope of delivery contains an aluminium screed protection cover (grindable), a suitable mounting lid to fix the cassette lined body and an ISO apron for decoupling from the underfloor connection socket.
Technical data
Dimensions
| Length | 243 mm |
|---|---|
| Width | 243 mm |
| Dimension h | 81 mm |
Technical data
| Floor height, min. | 136 mm |
|---|---|
| Floor covering thickness | 25 mm |
| Height-adjustment range, min. | 69 mm |
| Height-adjustment range, max. | 110 mm |
| Number of installable devices | 0 |
| Decouplable | yes |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Floor care | Wet |
| Installation depth | 136 mm |
| Cable outlet version | No cable outlet |
| Number of cable outlets | 0 |
| Device support to accept mounting boxes | no |
| Protection rating IK code | IK10 |
| Installation system type | UT4 |
| Heavy-duty version | no |
| Nominal size for device installation units | 9 |
| Approvals | VDE |
| Standard | EN 50085-2-2 |
| Protection rating (IP) when used | IP00 |
| Protection rating (IP) when unused | IP55 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Cover version | Square |
| Dimension | 243x243x118 |
| Material | Stainless steel 1.4301 |
Environmental Data
49,4163 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 49,4163 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 49,4163 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Floor height, min.
Floor covering thickness
Cable outlet version
Nominal size for device installation units
Dimension h
Item no.
TRKN 9 VS 350
136
25
No cable outlet
9
81
7409621
TRKN 9 VS 250
136
25
No cable outlet
9
7409601
TRKN 9 VS 350
Item no.
7409621
Floor height, min.
136
Floor covering thickness
25
Cable outlet version
No cable outlet
Nominal size for device installation units
9
Dimension h
81
TRKN 9 VS 250
Item no.
7409601
Floor height, min.
136
Floor covering thickness
25
Cable outlet version
No cable outlet
Nominal size for device installation units
9
