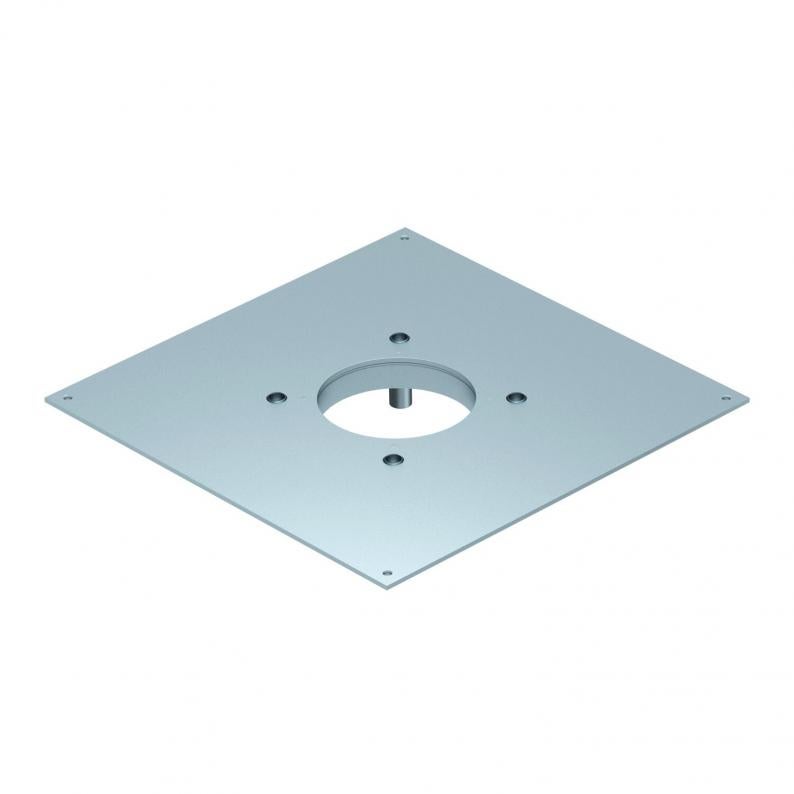

Heavy-duty mounting lid for 350, nominal size GES R2

Heavy-duty mounting lid for 350, nominal size GES R2

Type DUG 350 R2SL
Item no. 7410004
EAN 4012197401009
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

The heavy-duty mounting lid for the UZD350 underfloor box is suitable for the installation of a floor socket GES R2. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

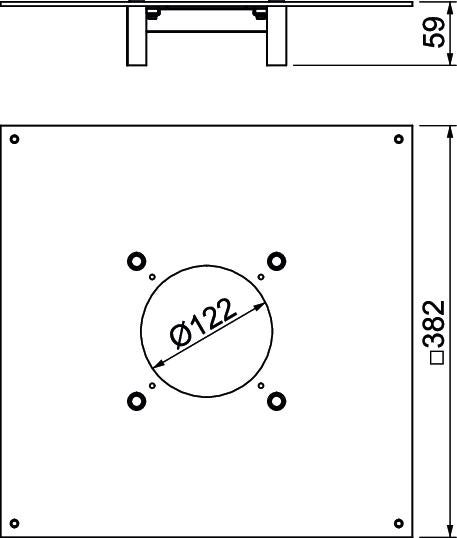

Dimensions

Length383 mm
Width383 mm

Technical data

Material thickness4 mm
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsno
Installation opening for on-floor tankno
Seal installation optionno
Floor careDry
Mounting opening coverno
Heavy-duty versionyes
Nominal size350 mm
Mounting openingRound
ROHS-conformantyes
Dimension383x383x59
SurfaceStrip galvanised
MaterialSteel
Product seriesUZD Underfloor junction box

Environmental Data

16,8656 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate16,8656 kg CO2e / 1 Piece
CO₂ Footprint (GWP)16,8656 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

DUG 250 R2SL
Item no.
7410002
Mounting opening
Round
DUG 350 R2SL
Item no.
7410004
Mounting opening
Round
