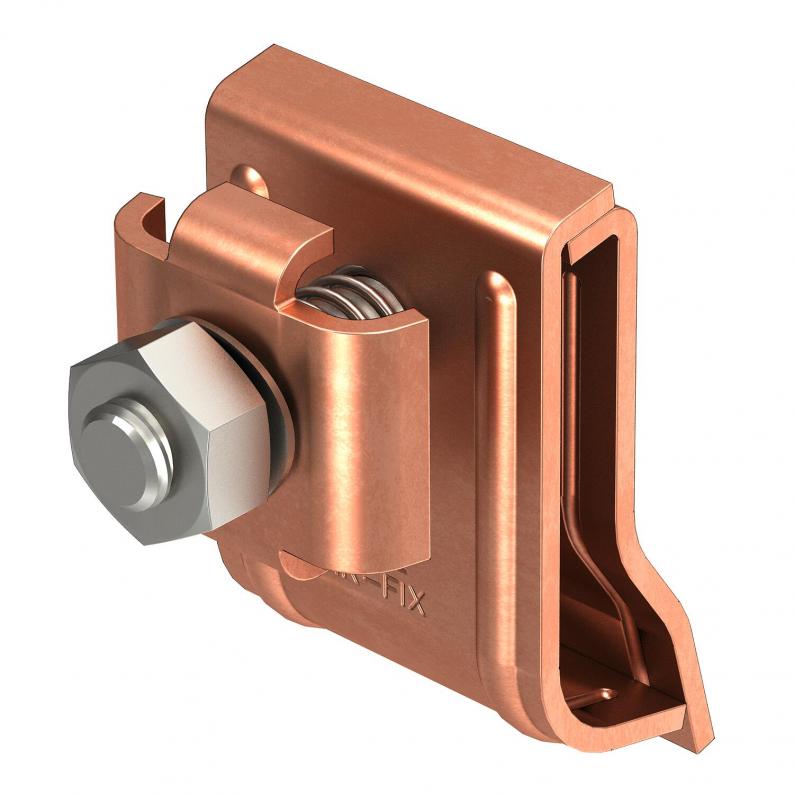

Gutter clamp RK-FIX Cu

Gutter clamp RK-FIX Cu

Type RK-FIX CU
Item no. 5316468
EAN 4012195433736
Show all variants
Item no. / Type
5316468 / RK-FIX CU
Fit
2 x Rd 8/ 2 x Rd 6 mm
Clamping range, min.
15 mm
Clamping range, max.
25 mm

Smallest selling unit: 10 piece

piece

Description

• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45

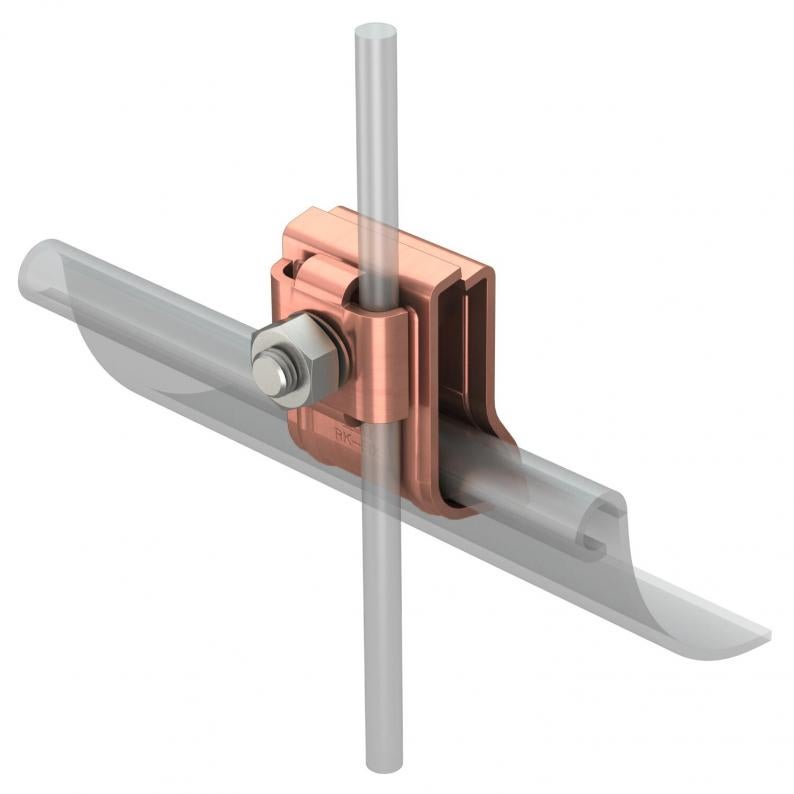

• With spring for prefixing on rain gutter
• Clamp body and crossbar made of rustproof stainless steel (V2A), copper-plated
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length64,95 mm
Width41 mm
Height45 mm

Technical data

Type of fastening screwGutter bolt
Type of connectorRoof gutter clamp
Lightning current carrying capacityH/100 kA
ROHS-conformantyes
Fit2 x Rd 8/ 2 x Rd 6 mm
Dimension2x8 / 2x6mm
SurfaceCopper-plated
MaterialStainless steel 1.4301
Clamping range, min.15 mm
Clamping range, max.25 mm

Environmental Data

0,277 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,277 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,277 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
