Gutter clamp RK-FIX A2

Gutter clamp RK-FIX A2

Type RK-FIX VA
Item no. 5316459
EAN 4012195433729
Show all variants
Item no. / Type
5316459 / RK-FIX VA
Fit
2 x Rd 8/ 2 x Rd 6 mm
Clamping range, min.
15 mm
Clamping range, max.
25 mm

Smallest selling unit: 10 piece

piece

Description

• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45
• With spring for prefixing on rain gutter
• Clamp body and crossbar made of rustproof stainless steel (V2A)
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
  • Lightning current-tested
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

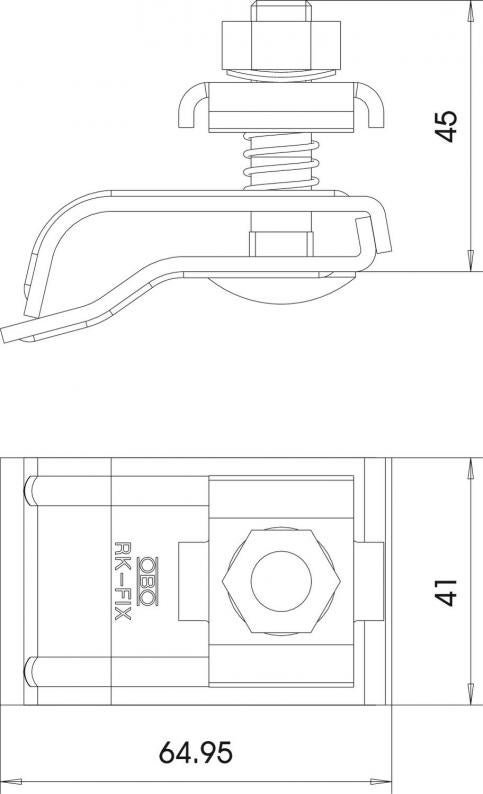

Dimensions

Length64,95 mm
Width41 mm
Height45 mm

Technical data

Type of fastening screwHexagonal bolt
Type of connectorRoof gutter clamp
Lightning current carrying capacityH/100 kA
ROHS-conformantyes
Fit2 x Rd 8/ 2 x Rd 6 mm
Dimension2x8 / 2x6mm
MaterialStainless steel 1.4301
Clamping range, min.15 mm
Clamping range, max.25 mm

Environmental Data

1,2314 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,2314 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,2314 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

RK-FIX VA
Item no.
5316459
Fit
2 x Rd 8/ 2 x Rd 6
Clamping range, min.
15
Clamping range, max.
25
