Foot plate for wide-span systems
Type WFP 160 FT
Item no. 6232510
EAN 4012197386108
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description

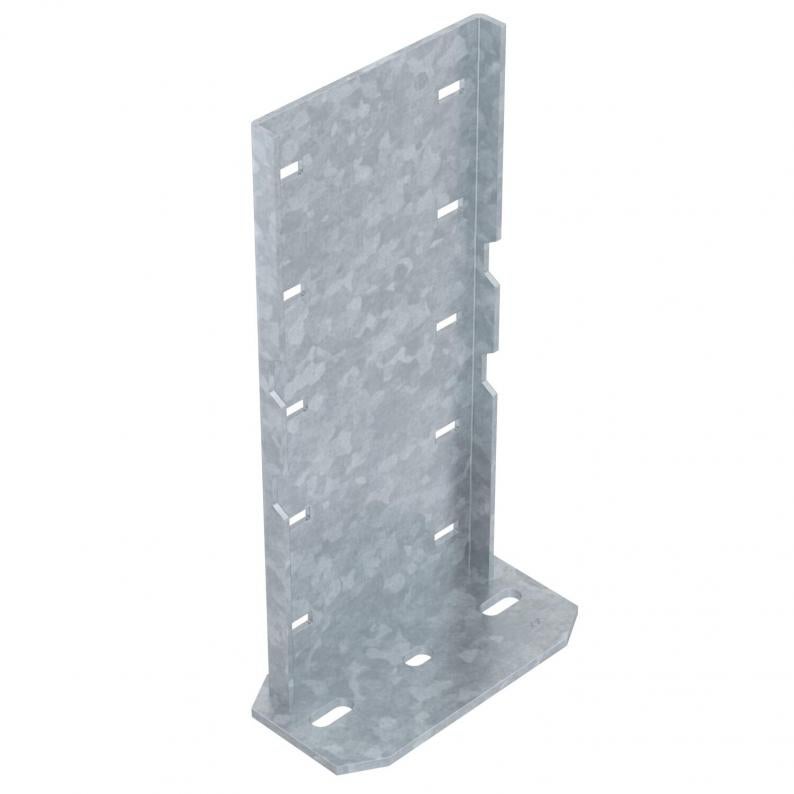

Foot plate to accept wide-span systems, e.g. for vertical routing of wide-span cable trays. Including screws, washers and nuts.
Technical data
Dimensions
| Length | 382 mm |
|---|---|
| Width | 169 mm |
| Height | 20 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Suitable for ceiling fastening | no |
| Suitable for panel fastening | no |
| Suitable for profile shapes | C profile |
| Version for | Screw head plate |
| ROHS-conformant | yes |
| Dimension | 160 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
8,7126 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 8,7126 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 8,7126 kg CO₂e |
| Determination date of CO2 value | 2025-05-27T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
