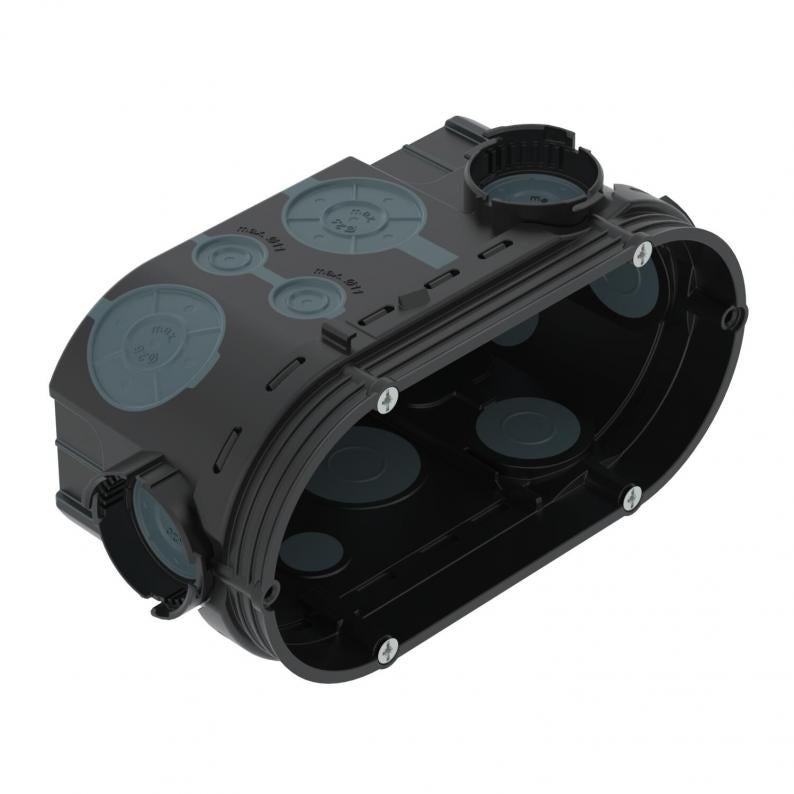

Flush-mounted device connection box 66, double version, airtight

Flush-mounted device connection box 66, double version, airtight

Type UG 66-DV-L
|
Item no. 2003723
|
EAN 4012196856558
Show all variants
Item no. / Type
2003723 / UG 66-DV-L
Height
67 mm
No. of entries
24
for pipe diameter
20/25 mm

Smallest selling unit: 10 piece

piece

Description

Double flush-mounted device box, with airtight membrane entries, for use in masonry with an installation depth of at least 67 mm.

• With 4 couplable connectors with bayonet lock
• 4 combination pipe entries of Ø 20 and 25 mm
• 4 entries up to Ø 20 mm
• 14 entries up to Ø 11 mm
• 2 entries up to Ø 20 mm in the base
Tested according to DIN EN 60670-1, DIN EN 60670-22 and DIN 49073-1.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Diameter 60 mm
  • Protection rating IP 30
  • Nominal cross-section 1.5–2.5 mm²
  • Nominal voltage 400 V
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
  • CO2-reduced material
  • Recycling material ratio in %

Technical data

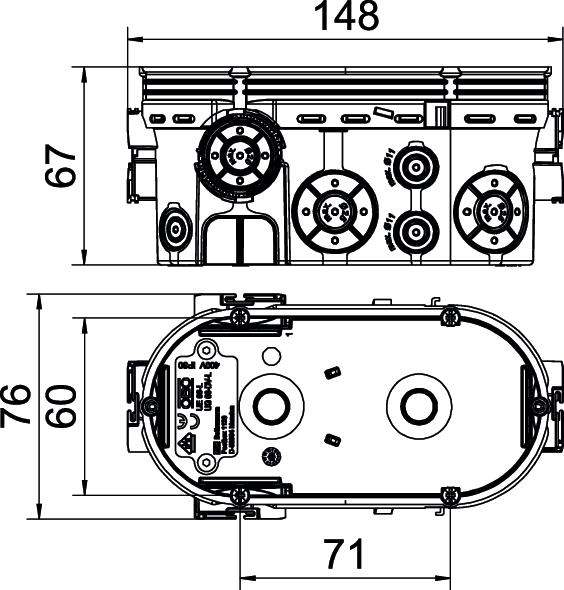

Dimensions

Length148 mm
Width68 mm
Height67 mm

Technical data

Type of entryNYM cables, data cables and corrugated pipes
Impact-resistantno
Halogen-freeyes
No. of entries24
Device fixingScrews or spreading claws
Entry from rearyes
Protection ratingIP30
Type of housing penetrationInsertion membrane
for pipe diameter20/25 mm
With boltsyes
Airtightyes
With nail strapno
Nominal cross-section, min.1,5 mm²
Nominal cross-section, max.2,5 mm²
ShapeOval
CoverWithout
Cover fasteningScrews ,
ROHS-conformantyes
Flame-resistantacc. to VDE 0471/IEC 60695-2-11, test temperature 650°C
Pipe entries Ø 20 mm6
Combination entries Ø 20 / 25 mm4
Dimension2x Ø61xH67mm
MaterialPolypropylene / Thermoplastic elastomer
Colourjet black / blue grey
Rated voltage400 V
Product seriesWIN Series

Environmental Data

0,2195 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Recycled material content 80 %
CO2 Footprint (GWP) Cradle-to-Gate0,2195 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,2195 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1
