Floor support
Type BOS600
Item no. 6288902
EAN 4012195149569
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description

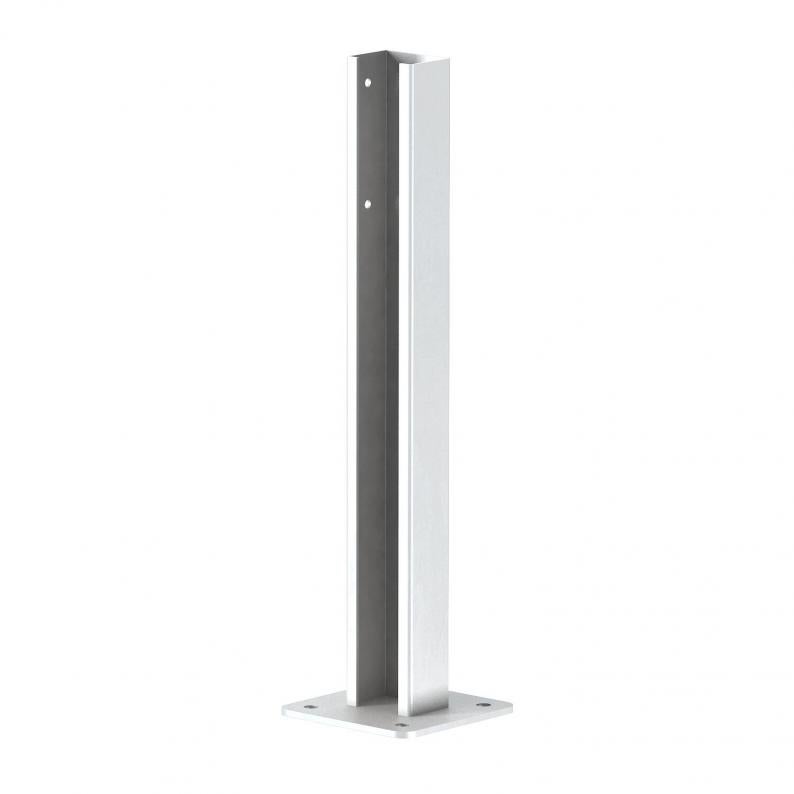

Floor support for mounting device installation trunking in front of window facades.
The mesh slats are simply attached to the slat holder.
The mesh slats are simply attached to the slat holder.
Technical data

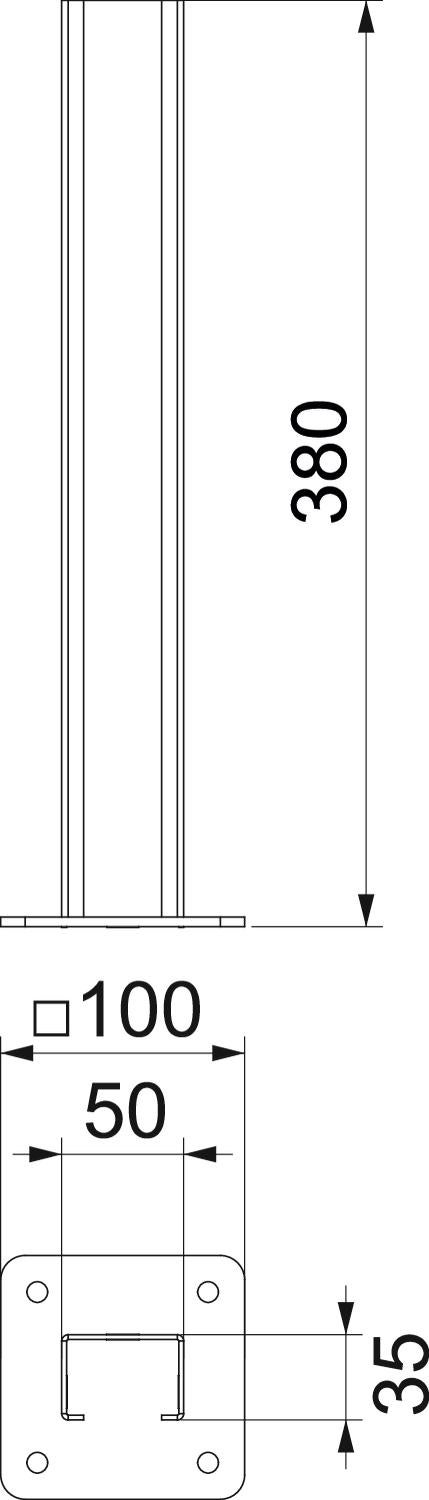

Dimensions
| Length | 580 mm |
|---|---|
| Width | 35 mm |
| Height | 50 mm |
Technical data
| Trunking mounting | Screw |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Version for | 600−700 mm |
| Fastening type | Screw-on |
| Version for | Floor mounting |
| Permitted temperature range, min. | -25 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 600mm |
| Material | Steel |
| Colour | Pure white; RAL 9010 |
| Product series | Rapid 80® |
Environmental Data
5,0397 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,0397 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 5,0397 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
