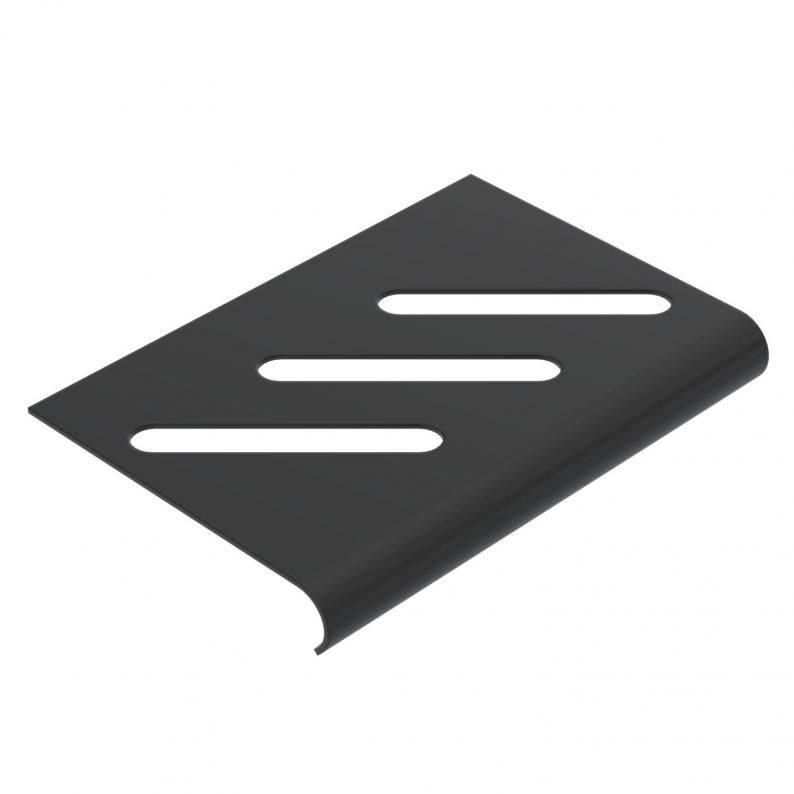

Floor end plate FSK, black
Type BEB 100 FSK SW
Item no. 7083107
EAN 4012197470494
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description
Bottom end plate for bottom reinforcement at the ends of the cable tray and as cable protection. Fastening material, screws of type FRSB M6x12, must be ordered separately.
Technical data

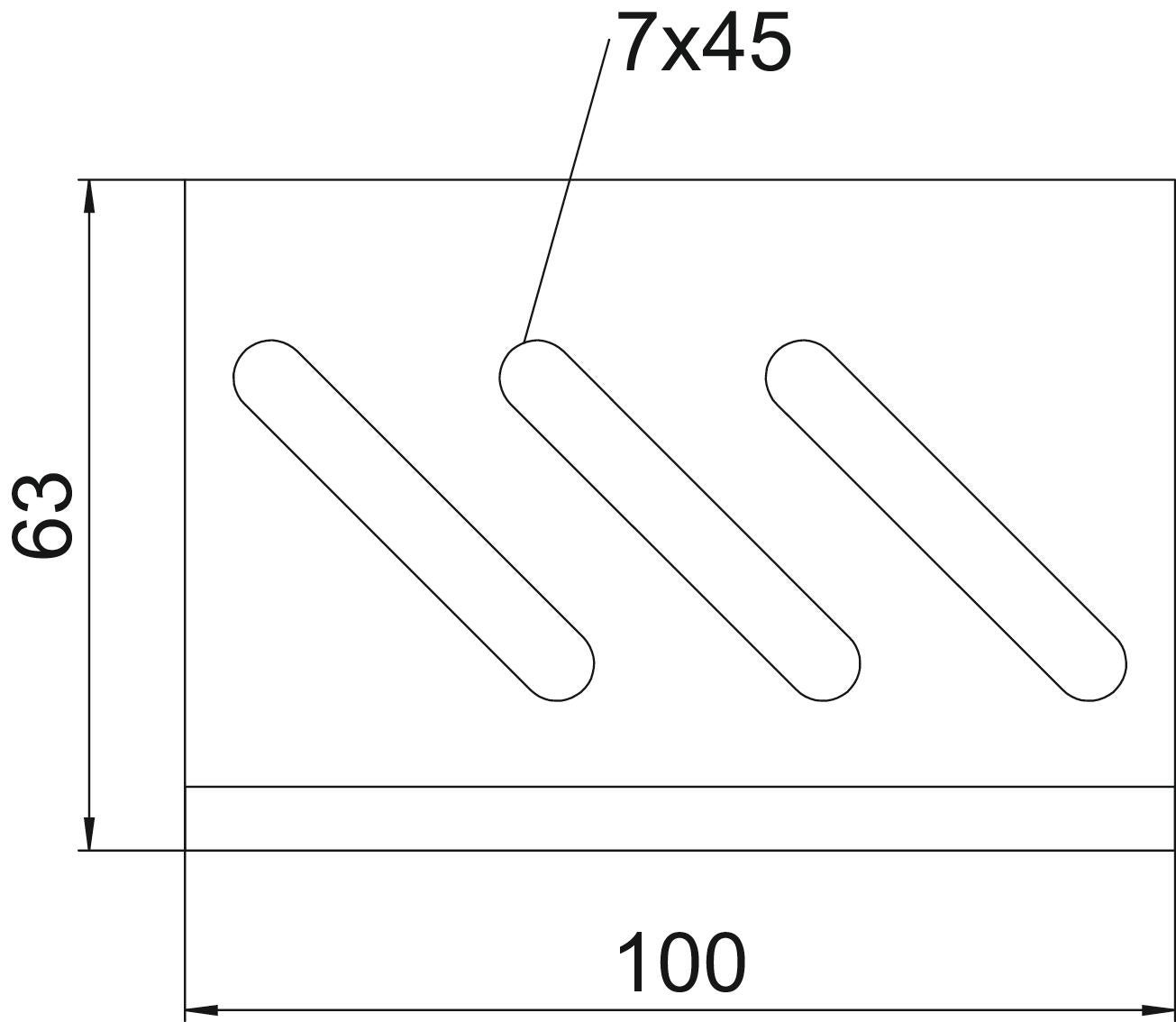

Dimensions
| Width | 100 mm |
|---|---|
| Dimension B | 100 mm |
| Dimension W | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Dimension | B100mm |
| Surface | PES135 - Polyester |
| Material | Steel |
| Colour | Jet black; RAL 9005 |
| Product series | BlackLine |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Item no.
BEB 100 FSK SW
100
7083107
BEB 300 FSK SW
300
7083301
BEB 200 FSK SW
200
7084183
BEB 400 FSK SW
400
7084184
Width
BEB 100 FSK SW
Item no.
7083107
Width
100
BEB 300 FSK SW
Item no.
7083301
Width
300
BEB 200 FSK SW
Item no.
7084183
Width
200
BEB 400 FSK SW
Item no.
7084184
Width
400
