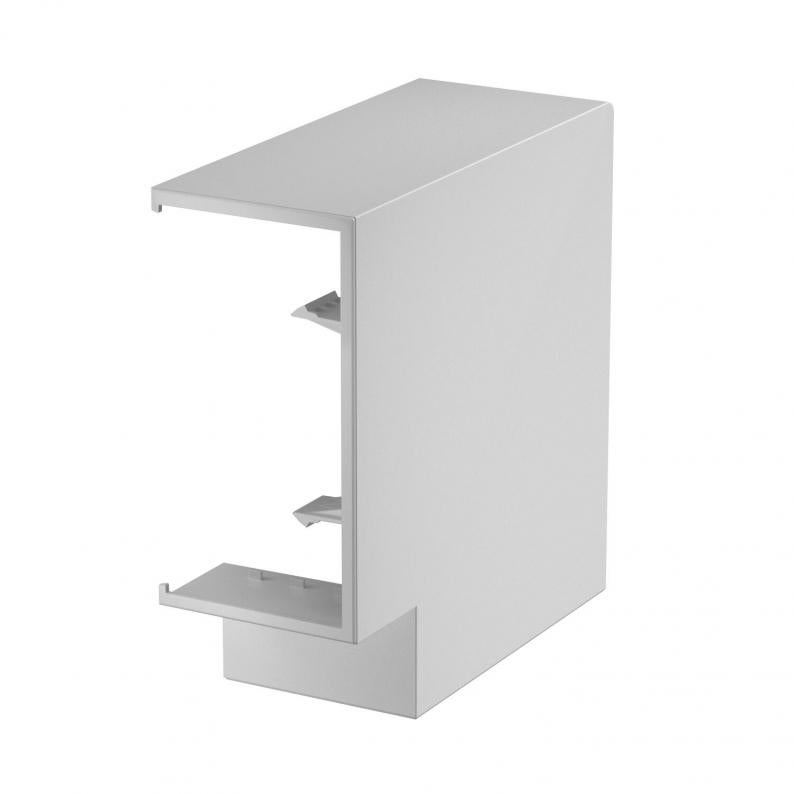

Flat angle Signa Base FW 70130

Flat angle Signa Base FW 70130

Type BRK FW70130 lgr
Item no. 6132767
EAN 4012196716463
Show all variants
Item no. / Type
Width
Height
Colour

Smallest selling unit: 1 piece

piece

Description

Flat angle as a fitting for changing the direction of the Signa Base device installation trunking.

Cut-concealing flat angle for snapping onto the base.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

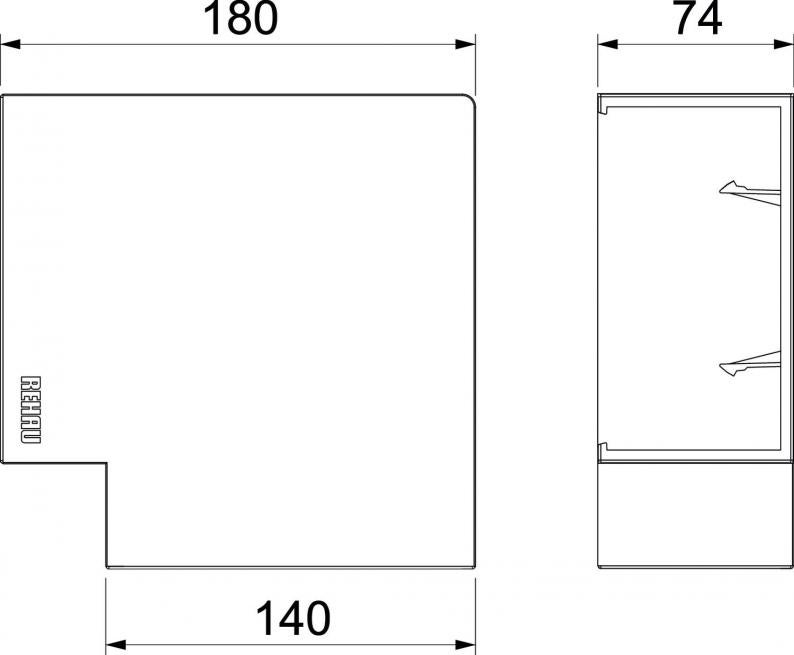

Dimensions

Length180 mm
Width180 mm
Height74 mm

Technical data

Mounting perforation in baseno
Halogen-freeyes
Cable retaining clipno
Protective filmno
Duct connectorno
Angle range, min.90 mm
Protection ratingIP40
Change of directionVertical, rising/falling
Symmetricalyes
Cover mounting typeCross-over
Protection rating IK codeIK07.
for duct width130 mm
for trunking height70 mm
Version forHood fitting
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourLight grey; RAL 7035
Antibacterial treatmentno
Product seriesSigna Base

Environmental Data

1,1605 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate1,1605 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,1605 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (1)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
BRK FW70130 cws
Item no.
6132765
Width
180
Height
74
Colour
Cream; RAL 9001
BRK FW70130 rws
Item no.
6132766
Width
180
Height
74
Colour
Pure white; RAL 9010
BRK FW70130 lgr
Item no.
6132767
Width
180
Height
74
Colour
Light grey; RAL 7035
