Flat angle, for cable trunking type LKM 60060
Type LKM F60060FS
Item no. 6247989
EAN 4012196503476
Item no. / Type
Dimension a
Trunking depth
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

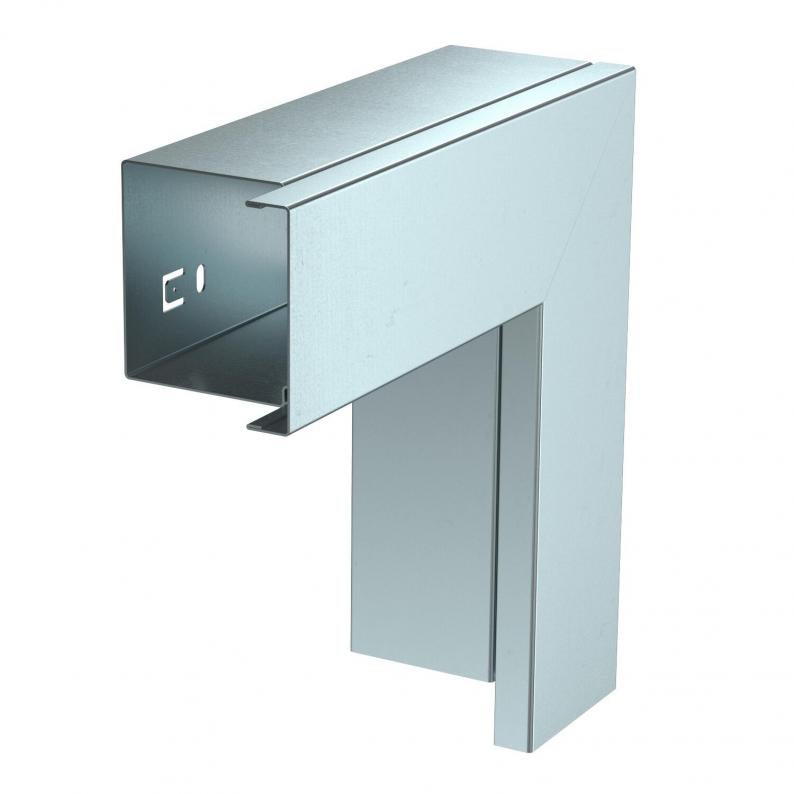

Flat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
Equipotential bonding without additional aids, between base and cover
Technical data
Dimensions
| Length | 200 mm |
|---|---|
| Width | 60 mm |
| Height | 64 mm |

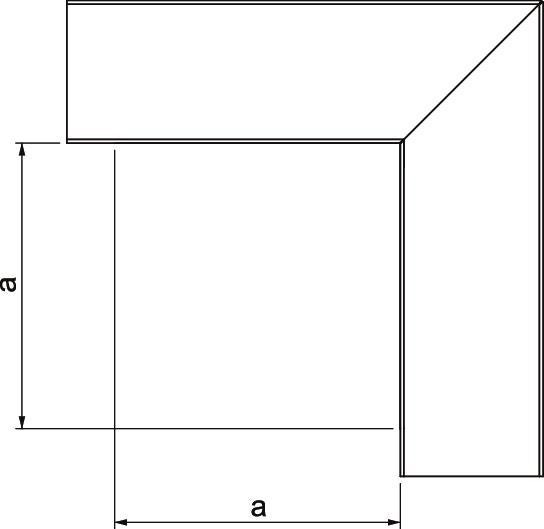

| Dimension a | 120 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| for duct dimension | 60 x 60 |
| Halogen-free | yes |
| Self-extinguishing | no |
| Protective film | no |
| Angle range, min. | 90 mm |
| Angle range, max. | 90 mm |
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Version for | Base and cover |
| Fastening type | Base perforation |
| ROHS-conformant | yes |
| Trunking depth | 64 mm |
| Duct height, min. | 64 mm |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 90 °C |
| Dimension | 60x60mm |
| Surface | Strip galvanised |
| Material | Steel |
| Colour | zinc |
| Antibacterial treatment | no |
| Product series | LKM |
Environmental Data
2,5865 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|---|
| Packaging without plastic | yes |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5865 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 2,5865 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Dimension a
Trunking depth
Colour
Item no.
LKM F60060FS
120
64
zinc
6247989
LKM F60060RW
120
64
Pure white; RAL 9010
6249485
Colour
LKM F60060FS
Item no.
6247989
Dimension a
120
Trunking depth
64
Colour
zinc
LKM F60060RW
Item no.
6249485
Dimension a
120
Trunking depth
64
Colour
Pure white; RAL 9010
