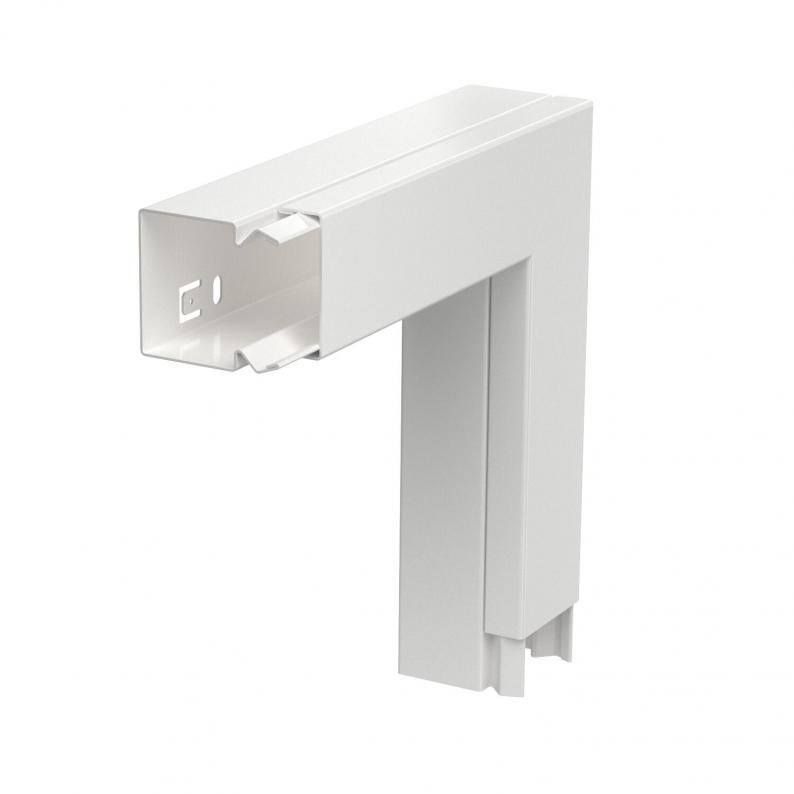

Flat angle, for cable trunking type LKM 40040

Flat angle, for cable trunking type LKM 40040

Type LKM F40040RW
Item no. 6248993
EAN 4012196652570
Show all variants
Item no. / Type
Dimension a
Trunking depth
Colour

Smallest selling unit: 1 piece

piece

Description

Flat angle including cover for changing the direction of the LKM ducts.
Equipotential bonding without additional aids, between base and cover
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length180 mm
Width40 mm
Height44 mm
Dimension a120 mm

Technical data

Maintain electrical functionsno
for duct dimension40 x 40
Halogen-freeyes
Self-extinguishingno
Protective filmno
Angle range, min.90 mm
Angle range, max.90 mm
Protection ratingIP30
Protection rating IK codeIK10
Version forBase and cover
Fastening typeBase perforation
ROHS-conformantyes
Trunking depth44 mm
Duct height, min.44 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension40x40mm
SurfaceStrip galvanised / plastic coated
MaterialSteel
ColourPure white; RAL 9010
Antibacterial treatmentno
Product seriesLKM

Environmental Data

1,6915 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,6915 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,6915 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
LKM F40040FS
Item no.
6247490
Dimension a
120
Trunking depth
44
Colour
zinc
LKM F40040RW
Item no.
6248993
Dimension a
120
Trunking depth
44
Colour
Pure white; RAL 9010
