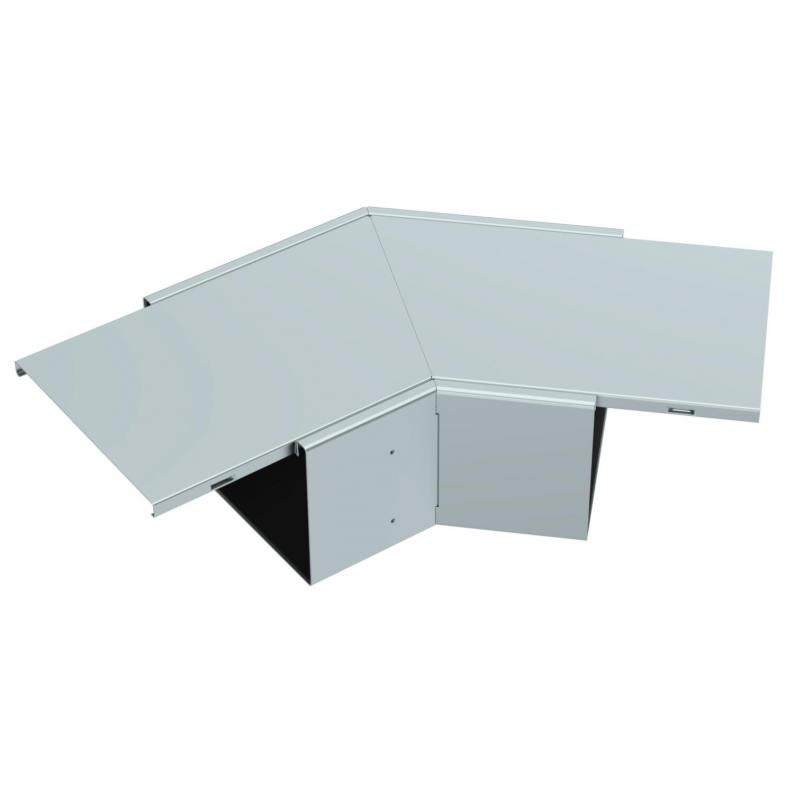

Flat angle, duct height 120 mm, FS

Flat angle, duct height 120 mm, FS

Type PLM FA45 1220 FS
Item no. 7218071
EAN 4012197459529
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

45° flat angle with intumescent fire protection mesh for PYROLINE® Rapid PLM installation duct. Suitable for direct wall and ceiling mounting, mounting below system floors and mounting on support systems. Tool-free joint mounting with PLM SI joint connector. The cover is snapped on without tools, allowing rapid inspection and retroassignment. The cover overhang allows offset cover mounting for continuous equipotential bonding of the entire duct section.
No maintenance of electrical functionality according to DIN 4102 Part 12!
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)

Technical data

Technical data

Usable cross-section18500 mm²
Angle of the bend45 °
Cover fasteningMiscellaneous
With perforationyes
Partitions possibleno
JacketingSteel
Number of flammable sides4
ROHS-conformantyes
Classification EI − installation duct90
Dimension340x490x120
SurfaceStrip galvanised
MaterialSteel
Colourzinc

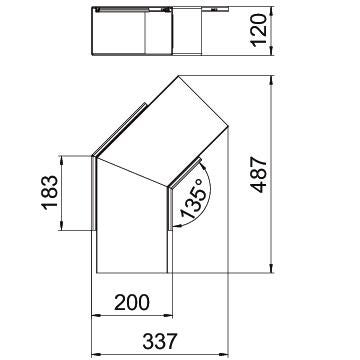

Dimensions

Dimension L487 mm
Dimension L2183 mm
Dimension W200 mm

Environmental Data

6,9563 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate6,9563 kg CO2e / 1 Piece
CO₂ Footprint (GWP)6,9563 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

PLM FA45 1220 FS
Item no.
7218071
Colour
zinc
PLM FA 1220 FS
Item no.
7218070
Dimension A
275
Dimension B
200
Dimension H
120
Colour
zinc
