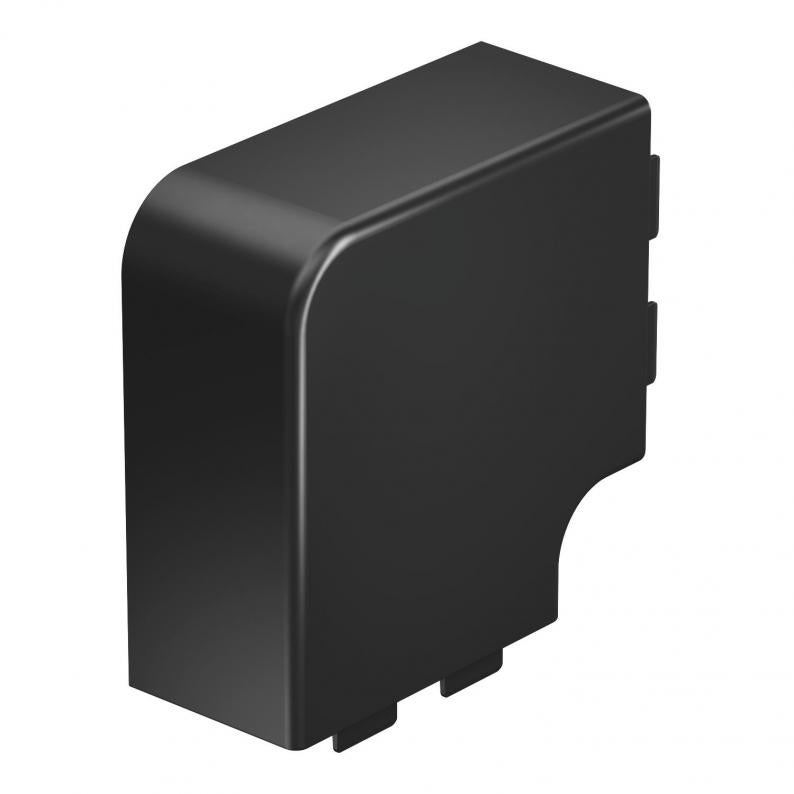

Flat angle cover, trunking type WDK 60110

Flat angle cover, trunking type WDK 60110

Type WDK HF60110SW
Item no. 6191794
EAN 4012197373405
Show all variants
Item no. / Type
Dimension H
Colour

Smallest selling unit: 2 piece

piece

Description

Flat angle hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length149 mm
Width110 mm
Height60 mm
Dimension H110 mm
Dimension a149 mm

Technical data

Maintain electrical functionsno
for duct dimension60 x 110
Halogen-freeno
Protective filmno
Angle range, min.90 mm
Angle range, max.90 mm
Version forHood fitting
Fastening typeLockable
ROHS-conformantyes
Trunking depth60 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension60x110
MaterialPolyvinylchloride
ColourJet black; RAL 9005
Product seriesBlackLine, WDK

Environmental Data

0,346 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,346 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,346 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (1)
Product images (1)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
WDK HF60110SW
Item no.
6191794
Dimension H
110
Colour
Jet black; RAL 9005
WDK HF60110GR
Item no.
6022332
Dimension H
110
Colour
Stone grey; RAL 7030
WDK HF60110CW
Item no.
6161529
Dimension H
110
Colour
Cream; RAL 9001
WDK HF60110LGR
Item no.
6183425
Dimension H
110
Colour
Light grey; RAL 7035
WDK HF60110RW
Item no.
6192939
Dimension H
110
Colour
Pure white; RAL 9010
