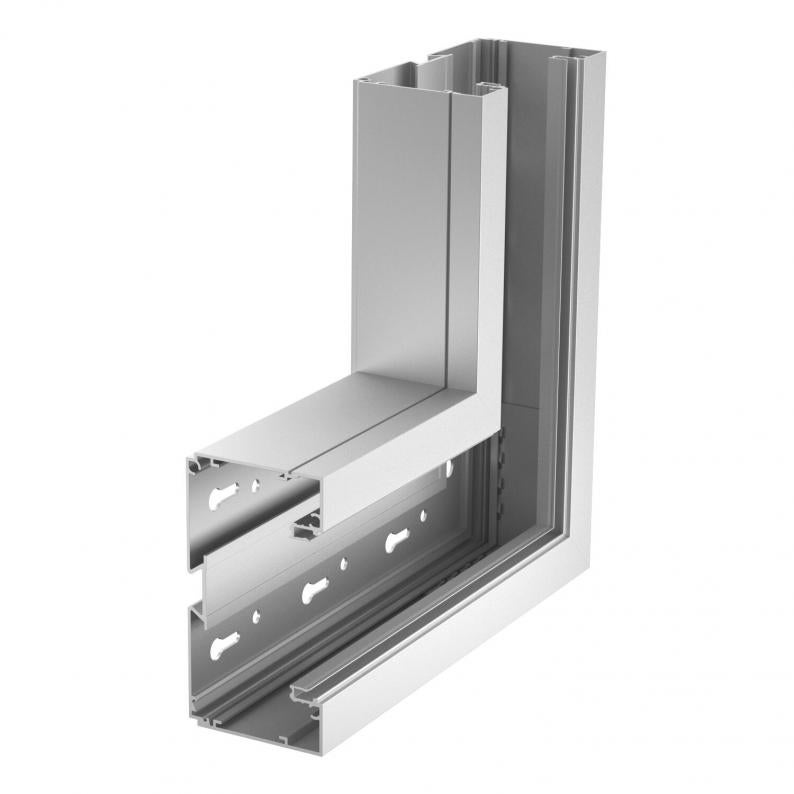

Flat angle BRA FW 70130, rising
Type BRA FWS70130 EL
Item no. 6133282
EAN 4012196735518
Item no. / Type
6133282 / BRA FWS70130 EL
Width
130 mm
Height
70 mm
Colour
aluminium
Smallest selling unit: 1 piece
1piece
piece
Description
Flat angle, rising, as a fitting for changing the direction of the Signa Style device installation trunking.
Solid fitting for attaching to the wall.
Technical data
Dimensions
| Length | 270 mm |
|---|---|
| Width | 130 mm |
| Height | 70 mm |
Technical data
| Mounting perforation in base | yes |
|---|---|
| Halogen-free | yes |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Angle range, min. | 90 mm |
| Protection rating | IP30 |
| Change of direction | Vertical rising |
| Symmetrical | no |
| Number of covers | 1 |
| Cover mounting type | Internal |
| Protection rating IK code | IK07. |
| for duct width | 130 mm |
| for trunking height | 70 mm |
| Version for | Base |
| ROHS-conformant | yes |
| Cover width | 79 mm |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 70x130x270 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| Antibacterial treatment | no |
| Product series | Signa Style |
Environmental Data
20,0809 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging without plastic | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 20,0809 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 20,0809 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
