Fastening bracket BW US 7 FT

Fastening bracket BW US 7 FT

Type BW US 7 FT
Item no. 6019532
EAN 4012196653645
Show all variants
Item no. / Type
6019532 / BW US 7 FT
Width
100 mm
Height
127 mm

Smallest selling unit: 5 piece

piece

Description

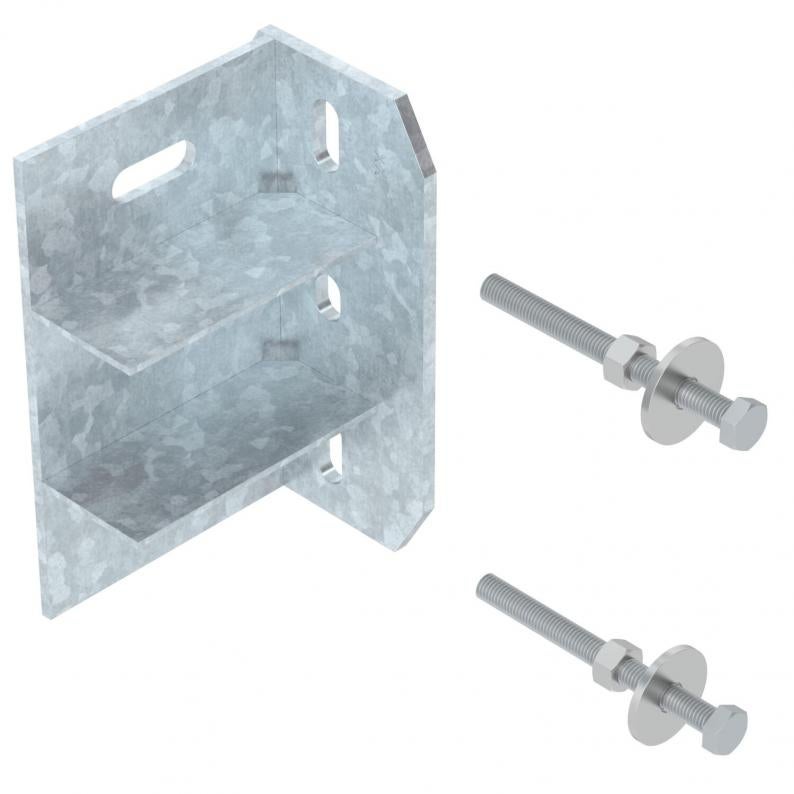

Fastening bracket for the creation of individual support structures with U supports.

Suitable for U support, type US 7.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

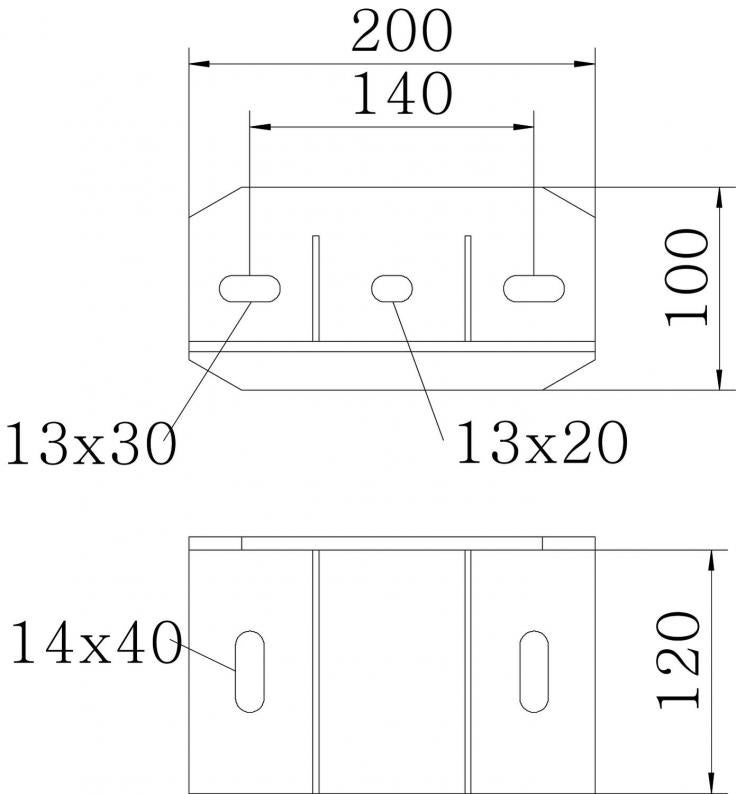

Technical data

Dimensions

Length200 mm
Width100 mm
Height127 mm

Technical data

Maintain electrical functionsno
Material thickness3 mm
Adjustableyes
With screw accessoriesyes
Suitable for profile shapesU profile
Version forFastening bracket
ROHS-conformantyes
Dimension200x120
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Product seriesUS 7 Series

Environmental Data

5,8636 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate5,8636 kg CO2e / 1 Piece
CO₂ Footprint (GWP)5,8636 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)

Variants

BW US 7 FT
Item no.
6019532
Width
100
Height
127
