External corner BRA AE 70170

External corner BRA AE 70170

Type BRA AE70170 EL
Item no. 6133273
EAN 4012196735365
Show all variants
Item no. / Type
6133273 / BRA AE70170 EL
Colour
aluminium

Smallest selling unit: 1 piece

piece

Description

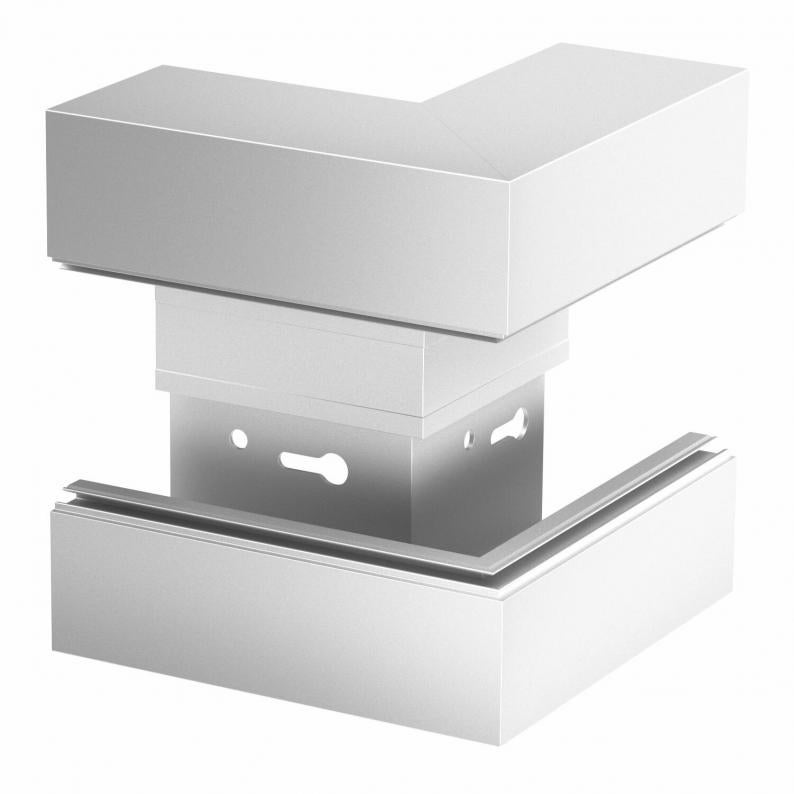

External corner as a fitting for changing the direction of the Signa Style device installation trunking.

Cut-concealing.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

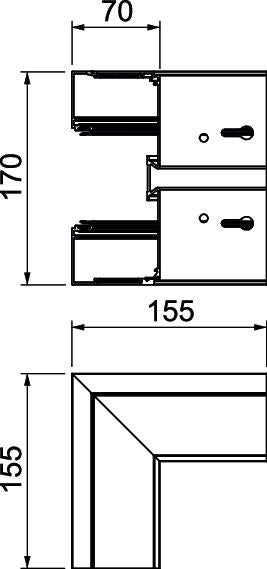

Dimensions

Length155 mm
Width170 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Halogen-freeyes
Cable retaining clipno
Protective filmyes
Duct connectorno
Angle range, min.90 mm
Protection ratingIP30
Symmetricalno
Number of covers1
Cover mounting typeInternal
Protection rating IK codeIK07.
for duct width170 mm
for trunking height70 mm
Version forBase
ROHS-conformantyes
Cover width79 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension70x170x155
SurfaceAnodised
MaterialAluminium
Colouraluminium
Antibacterial treatmentno
Product seriesSigna Style

Environmental Data

15,7167 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate15,7167 kg CO2e / 1 Piece
CO₂ Footprint (GWP)15,7167 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
