End piece, for cable trunking type LKM 30030

End piece, for cable trunking type LKM 30030

Type LKM E30030RW
Item no. 6249410
EAN 4012197269388
Show all variants
Item no. / Type

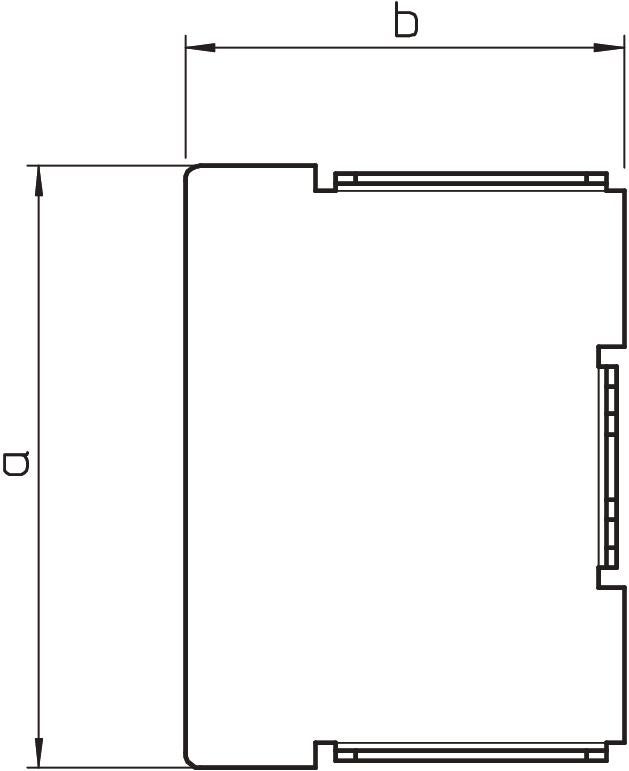

Dimension b
Dimension a
Colour

Smallest selling unit: 10 piece

piece

Description

End piece for closing the LKM ducts.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length30 mm
Width30 mm
Height30 mm
Dimension b30 mm
Dimension a30 mm

Technical data

Maintain electrical functionsno
Halogen-freeyes
Protective filmno
Protection ratingIP30
Protection rating IK codeIK10
Version forLeft/right
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.90 °C
Dimension30x30mm
SurfaceStrip galvanised / plastic coated
MaterialSteel
ColourPure white; RAL 9010
Product seriesLKM

Environmental Data

0,153 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,153 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,153 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Colour
LKM E30030FS
Item no.
6247876
Dimension b
30
Dimension a
30
Colour
zinc
LKM E30030RW
Item no.
6249410
Dimension b
30
Dimension a
30
Colour
Pure white; RAL 9010
