End piece, duct height 120 mm, pure white

End piece, duct height 120 mm, pure white

Type PLM EP 1220 RW
Item no. 7218096
EAN 4012197310301
Show all variants
Item no. / Type
7218096 / PLM EP 1220 RW
Dimension B
205 mm
Dimension H
121 mm
Colour
Pure white; RAL 9010

Smallest selling unit: 1 piece

piece

Description

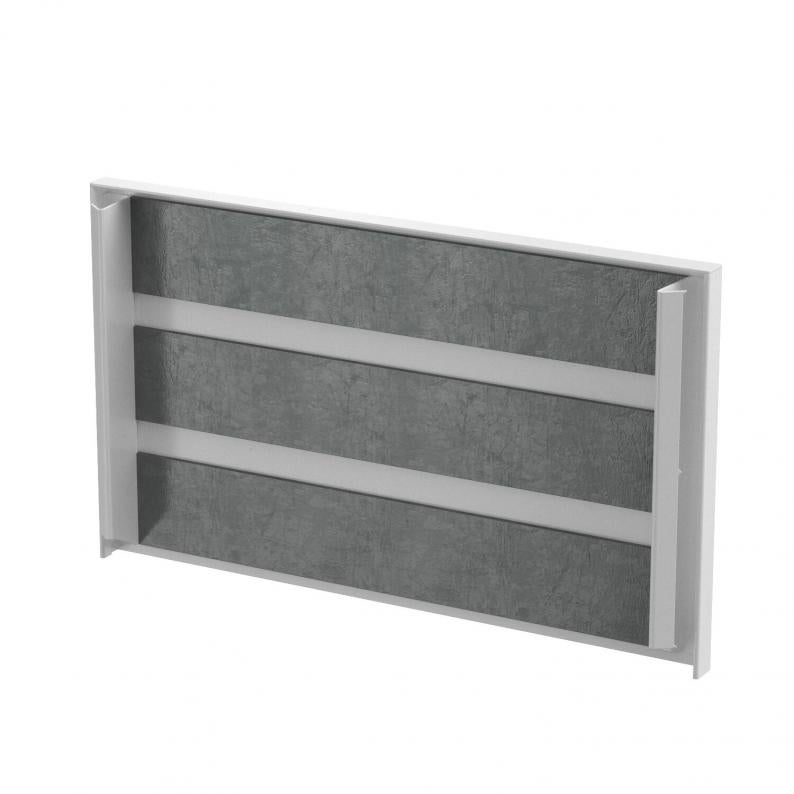

End piece with intumescent fire protection mesh to close the PYROLINE® Rapid PLM installation duct.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Usable cross-section18500 mm²
JacketingSteel
Number of flammable sides4
ROHS-conformantyes
Classification EI − installation duct90
Dimension205x20x121
SurfacePowder-coated
MaterialSteel
ColourPure white; RAL 9010
Product seriesPYROLINE® rapid PLM

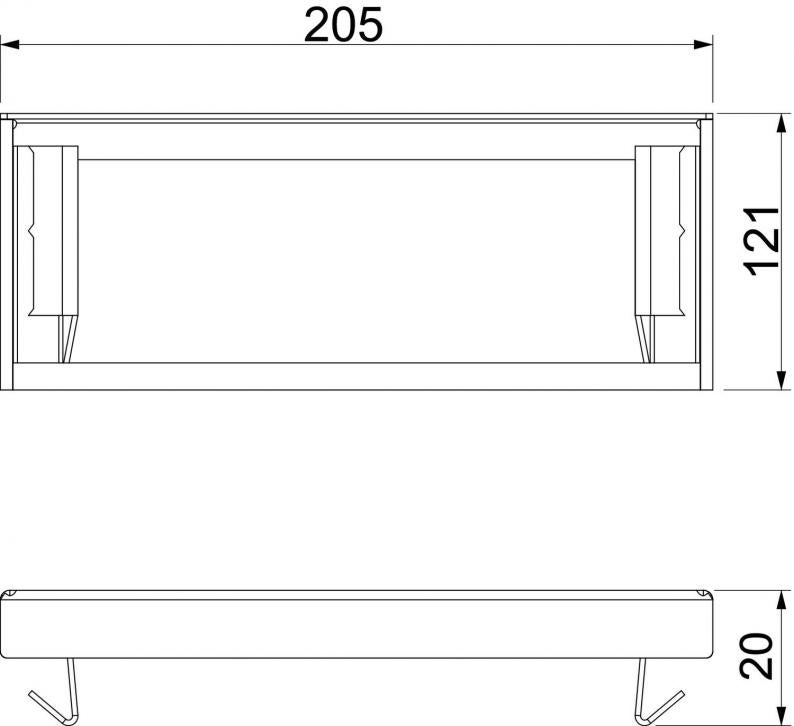

Dimensions

Dimension B205 mm
Dimension H121 mm

Environmental Data

0,9137 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate0,9137 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,9137 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
