End piece BRA ES 70130

End piece BRA ES 70130

Type BRA ES70130 EL
Item no. 6133292
EAN 4012196735730
Show all variants
Item no. / Type
6133292 / BRA ES70130 EL
Colour
aluminium

Smallest selling unit: 1 piece

piece

Description

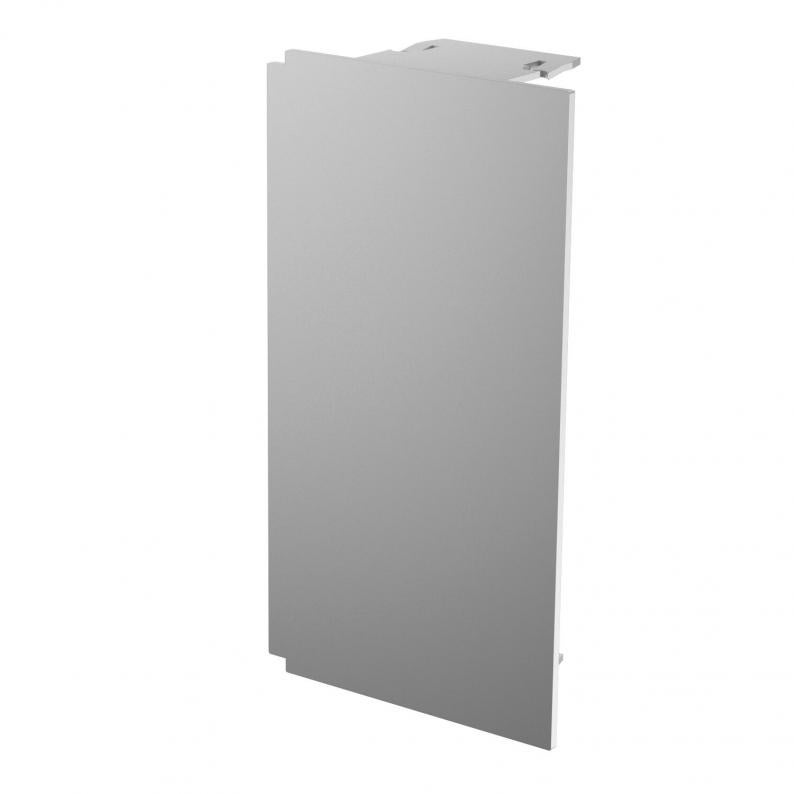

End piece as a fitting for the Signa Style device installation trunking.

For a clean end to the trunking system. For attaching to the trunking ends.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

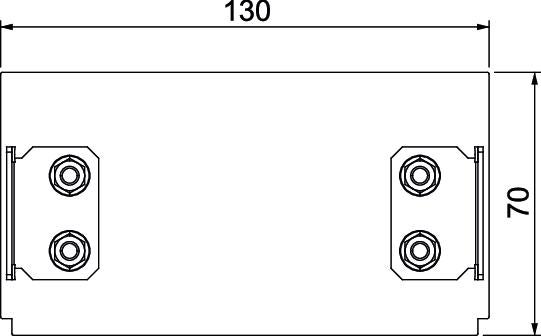

Dimensions

Length37 mm
Width130 mm
Height70 mm

Technical data

Halogen-freeyes
Protective filmyes
Cut laminationno
Protection ratingIP30
Protection rating IK codeIK07.
for duct width130 mm
for trunking height70 mm
Version forUniversal
Fastening typeLockable
Suitable forLeft/right
ROHS-conformantyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension70x130x37
SurfaceAnodised
MaterialAluminium
Colouraluminium
Antibacterial treatmentno
Product seriesSigna Style

Environmental Data

1,8754 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate1,8754 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,8754 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
