Earthing clip for profile rails, H foot, 1 cable

Earthing clip for profile rails, H foot, 1 cable

Type ES-H1-M-16 A2
Item no. 1167096
EAN 4012197426415
Show all variants
Item no. / Type
1167096 / ES-H1-M-16 A2
Max. Tightening torque
3 Nm
Clamping range D, min.
12 mm
Clamping range D, max.
16 mm

Smallest selling unit: 50 piece

piece

Description

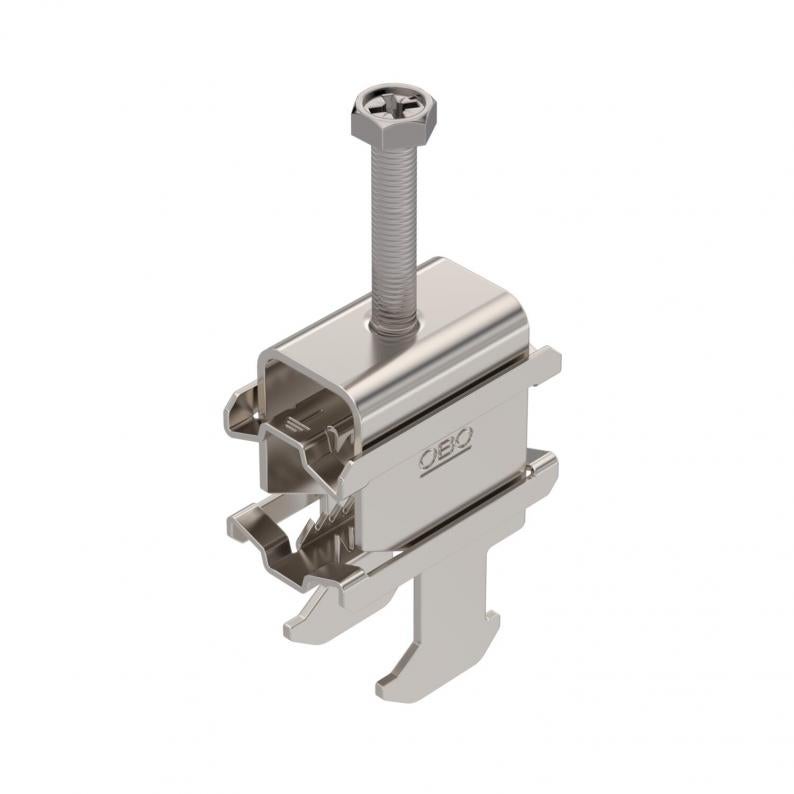

Earthing clip with hammer-head foot for the creating of electrical connection between cables and steel construction, used preferably in underground train systems. For mounting on profile rails. Suitable for 1 cable Ø 12–16 mm. Including special counter trough with teething.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 16–17 mm

Technical data

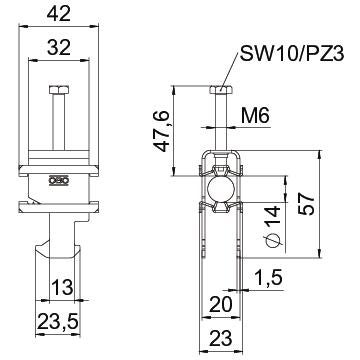

Dimensions

Length32 mm
Width20 mm
Height57 mm
Dimension L38 mm
Dimension A32 mm
Dimension B20 mm
Dimension H57 mm
Dimension t1,5 mm
Dimension C42 mm

Technical data

Plate thickness1,5 mm
For pipe diameter, min.12 mm
For pipe diameter, max.16 mm
for rail with slot width (with interval), min.16 mm
for rail with slot width (with interval), max.17 mm
Halogen-freeyes
ThreadM6
With plastic troughno
With metal troughyes
Length of external dimensions42 mm
Number of cables/pipes1
Surface additionUntreated
Material additionRustproof steel
Max. Tightening torque3 Nm
Mounting typeProfile rail
Clamping range D, min.12 mm
Clamping range D, max.16 mm
Dimension12-16 mm
SurfaceBright, treated
MaterialStainless steel 1.4301
With counter-troughyes
Material of troughRustproof steel
Material quality of troughStainless steel 304 (1.4301)
Material of counter-troughRustproof steel
Product series2056 / 2058
