DSSL heavy-duty support

DSSL heavy-duty support

Type DSSL2 135
Item no. 7410585
EAN 4012196540938
Show all variants
Item no. / Type
Width
Screed height, min.
Screed height, max.

Smallest selling unit: 1 PU

PU

Description

The heavy-duty supports reinforce the corner areas of the type UZD underfloor box for increased load requirements.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

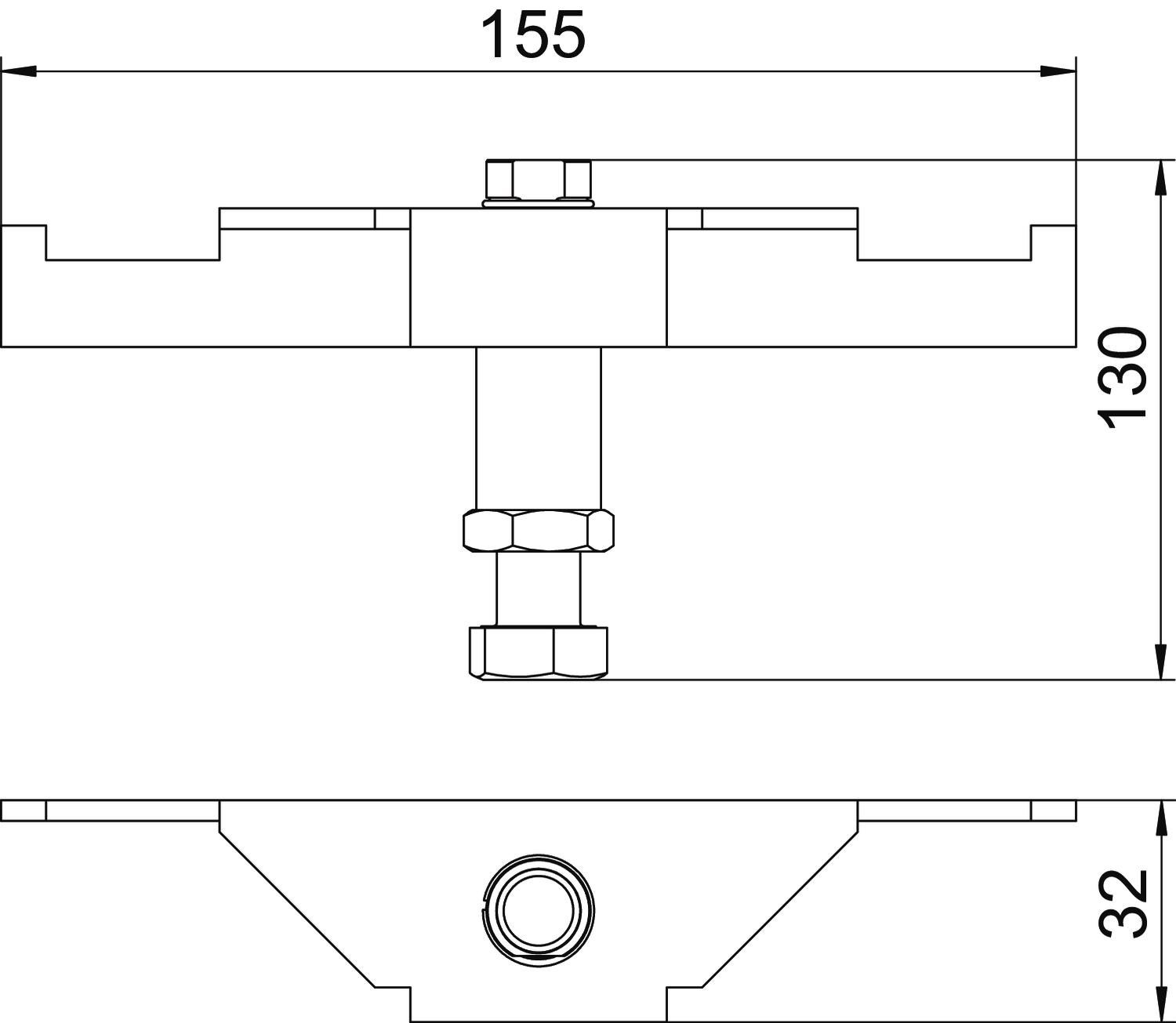

Dimensions

Length155 mm
Width32 mm
Height130 mm

Technical data

Screed height, min.135 mm
Screed height, max.170 mm
Heavy-duty versionyes
ROHS-conformantyes
Dimension135/170
SurfaceStrip galvanised
MaterialSteel
Product seriesUZD Underfloor junction box

Environmental Data

3,2714 kg CO2e / 4 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate3,2714 kg CO2e / 4 Piece
CO₂ Footprint (GWP)3,2714 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity4

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

Screed height, min.
Screed height, max.
DSSL2 75
Item no.
7410581
Width
32
Screed height, min.
75
Screed height, max.
110
DSSL2 105
Item no.
7410583
Width
32
Screed height, min.
105
Screed height, max.
140
DSSL2 135
Item no.
7410585
Width
32
Screed height, min.
135
Screed height, max.
170
DSSL2 165
Item no.
7410587
Width
32
Screed height, min.
165
Screed height, max.
200
DSSL2 195
Item no.
7410589
Width
32
Screed height, min.
195
Screed height, max.
230
