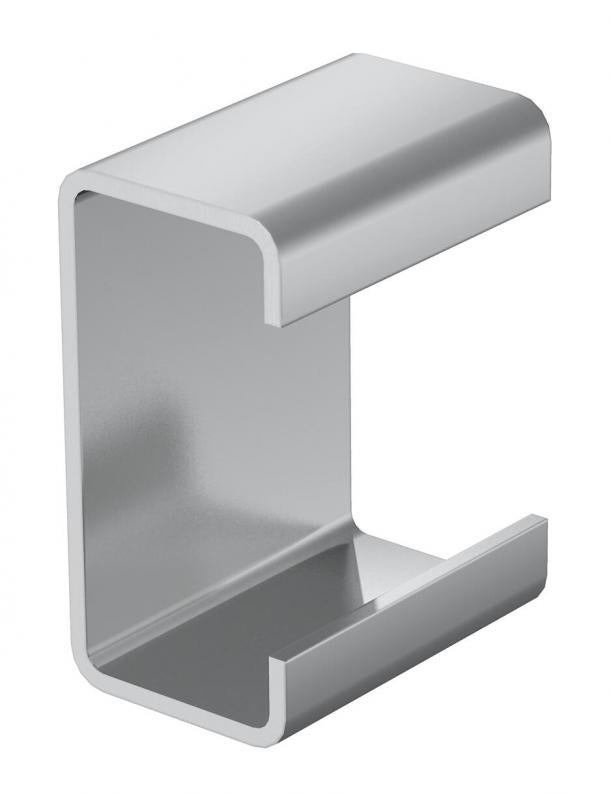

DSK 61 A4 spacer
Type DSK 61 A4
Item no. 6416533
EAN 4012195403173
Item no. / Type
6416533 / DSK 61 A4
Length
80 mm
Width
61 mm
Height
40 mm
Colour
stainless steel
Smallest selling unit: 10 piece
10piece
piece
Description
Spacer for use in US 7 supports.
For static reasons, the spacer is always used to prevent the support from deforming when the hexagonal bolts are used to fasten the bracket or head plate.
Technical data
Dimensions
| Length | 80 mm |
|---|---|
| Width | 61 mm |
| Height | 40 mm |
Technical data
| With screw accessories | no |
|---|---|
| Dimension | 80 x 61 x 40 x 2,5 |
| Suitable for profile shapes | U profile |
| ROHS-conformant | yes |
| Dimension | 80x61x40 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| Product series | US 7 Series |
Environmental Data
1,1847 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1847 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 1,1847 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
