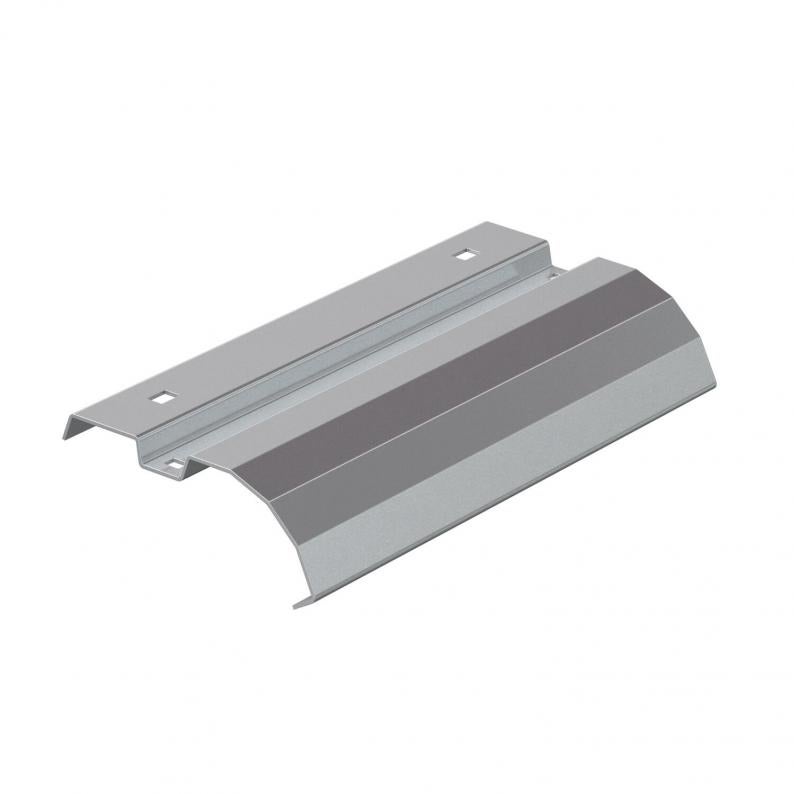

Drop-out plate LABE DD

Drop-out plate LABE DD

Type LABE 20 DD
|
Item no. 6220622
|
EAN 4012196164110
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

Exit plate for installation on the rung for vertically exiting cables.

The exit plate can only be used when the rail and the rung form the end of the cable ladder.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

Technical data

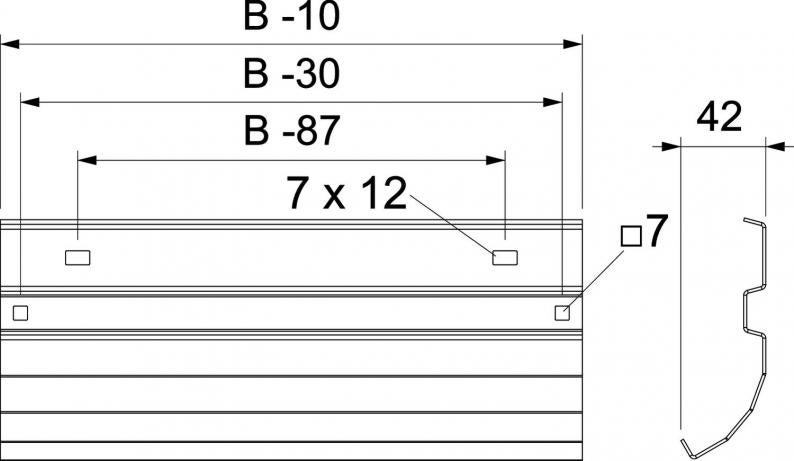

Dimensions

Width200 mm
Height45 mm

Technical data

Plate thickness1,5 mm
DimensionB200mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Environmental Data

1,224 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate1,224 kg CO2e / 1 Piece
CO₂ Footprint (GWP)1,224 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared Unit (LCA)Units
Declared Unit Quantity (LCA)1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
LABE 20 DD
Item no.
6220622
Width
200
LABE 30 DD
Item no.
6220630
Width
300
LABE 40 DD
Item no.
6220649
Width
400
LABE 50 DD
Item no.
6220657
Width
500
