Device plate GP 31 FT
Type GP 31 28 FT
Item no. 6357016
EAN 4012196296415
Item no. / Type
6357016 / GP 31 28 FT
Smallest selling unit: 1 piece
1piece
piece
Description

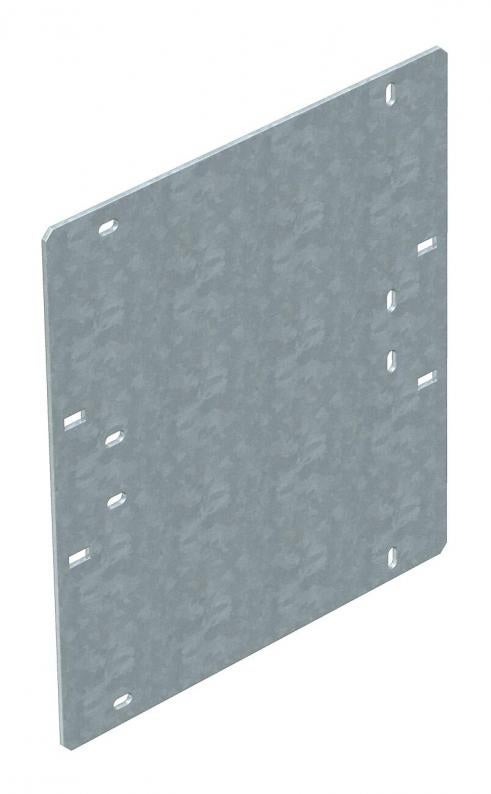

Mounting plate for fastening to motor connection column, type MAS 140/10.
Technical data

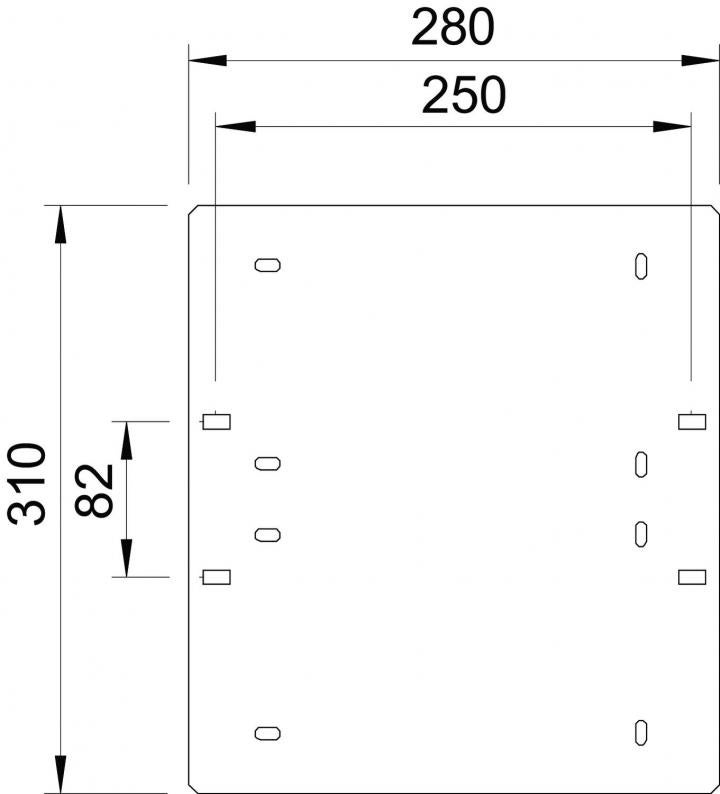

Dimensions
| Length | 310 mm |
|---|---|
| Width | 280 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Fastening type | Screw fastening |
| ROHS-conformant | yes |
| Dimension | 310x280 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
5,3607 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 5,3607 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 5,3607 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
