Device panels BRK BL CEE
Type BRK BL CEE rws
Item no. 6133591
EAN 4012196716913
Item no. / Type
6133591 / BRK BL CEE rws
Smallest selling unit: 1 piece
1piece
piece
Description

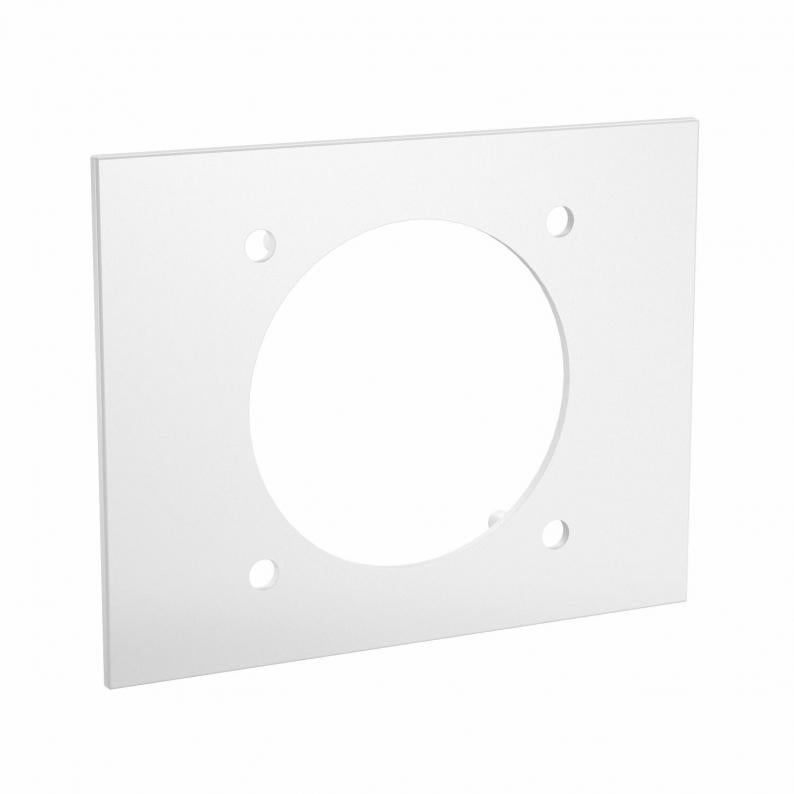

Device cover for covering CEE sockets for the Signa Base trunking system.
Technical data

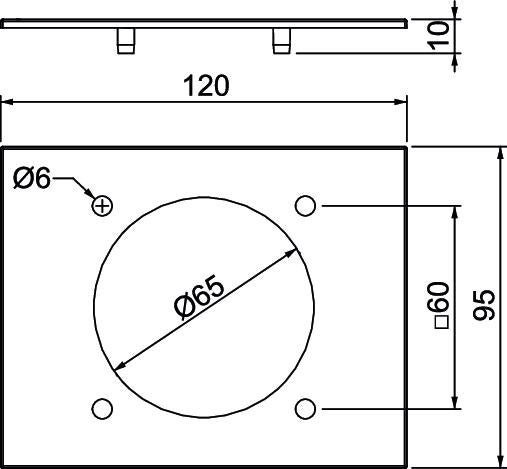

Dimensions
| Length | 120 mm |
|---|---|
| Width | 95 mm |
| Height | 10 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | no |
| Version for | Smooth |
| ROHS-conformant | yes |
| Cover width | 95 mm |
| Dimension | 120x95x10 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
Environmental Data
0,1259 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1259 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,1259 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
