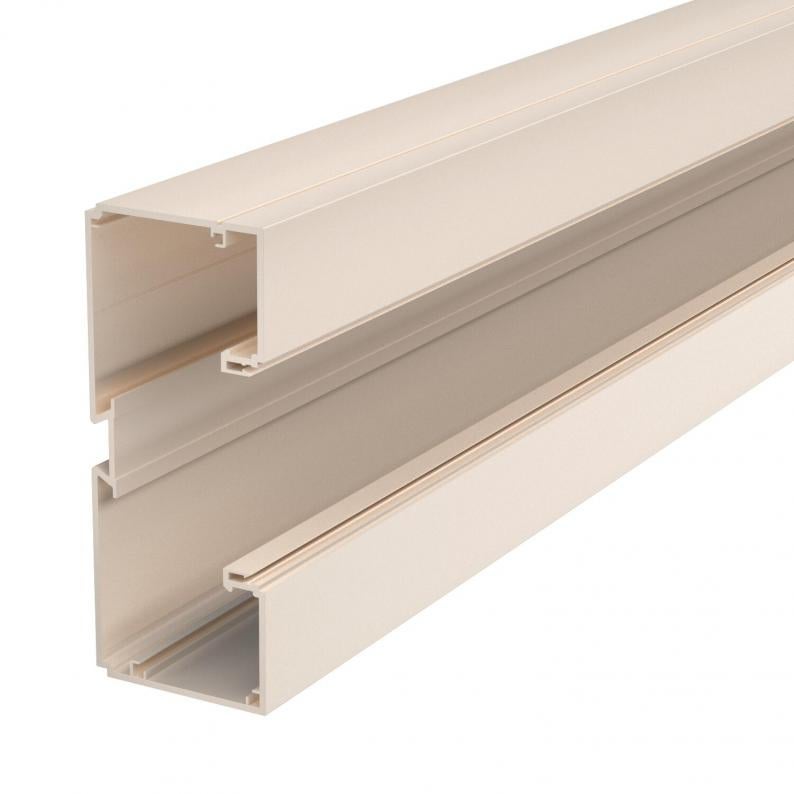

Device installation trunking Signa Base 70170

Device installation trunking Signa Base 70170

Type BRK 70170 cws
Item no. 6132730
EAN 4012196717460
Show all variants
Item no. / Type
Length
Colour

This item is a discontinued product!

You can find the successor product here.

Smallest selling unit: 2 m

m

Description

Trunking base of the Signa Base device installation trunking for covered cable routing and device installation in internal areas. The scope of delivery contains two trunking couplings.

Trunking base with base perforation for direct mounting on the wall. Direction changes with the fittings and close the trunking ends with end pieces.

Technical data

Dimensions

Length2000 mm
Width170 mm
Height70 mm

Technical data

Mounting perforation in baseyes
Usable cross-section10056 mm²
Halogen-freeno
Number of insertable partitions1
Cable retaining clipyes
Protective filmyes
Duct connectoryes
Protection ratingIP40
Symmetricalno
Rectangular shapeyes
Number of covers1
Rear panel version (inner side)Continuous DIN rail
Cover mounting typeInternal
Protection rating IK codeIK07.
Cover suppliedno
Cover width79 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
MaterialPolyvinylchloride
ColourCream; RAL 9001
Antibacterial treatmentno

Environmental Data

3,3452 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboardyes
CO2 Footprint (GWP) Cradle-to-Gate3,3452 kg CO2e / 1 Meter
CO₂ Footprint (GWP)3,3452 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Declarations (3)
Product images (2)
Tender specifications (1)

Variants

Colour
BRK 70170 cws
Item no.
6132730
Length
2000
Colour
Cream; RAL 9001
BRK 70170 rws
Item no.
6132731
Length
2000
Colour
Pure white; RAL 9010
BRK 70170 lgr
Item no.
6132732
Length
2000
Colour
Light grey; RAL 7035
