D-Sub9 connection, 1 module, slanting outlet, as screw connection

D-Sub9 connection, 1 module, slanting outlet, as screw connection

Type MTS-DB9 S RW1
Item no. 6104646
EAN 4012195898269
Show all variants
Item no. / Type
Colour

This item is a discontinued product!

Smallest selling unit: 1 piece

piece

Description

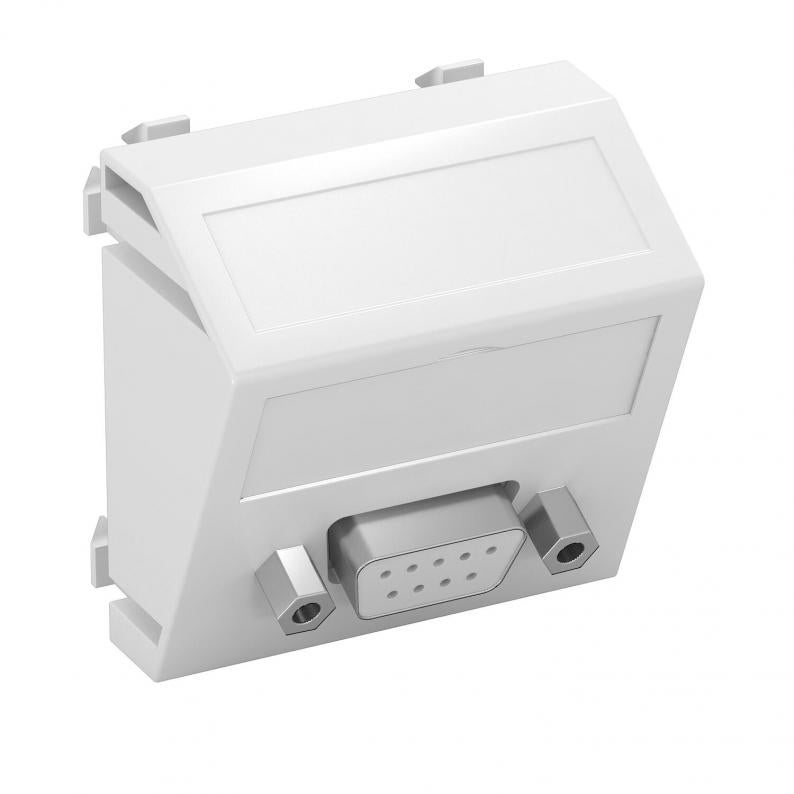

Multimedia support with one D-Sub9 connection socket, slanting cable outlet, with labelling panel, D-Sub9 socket (RS232) with screw connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

  • CO₂ footprint (PCF)

Technical data

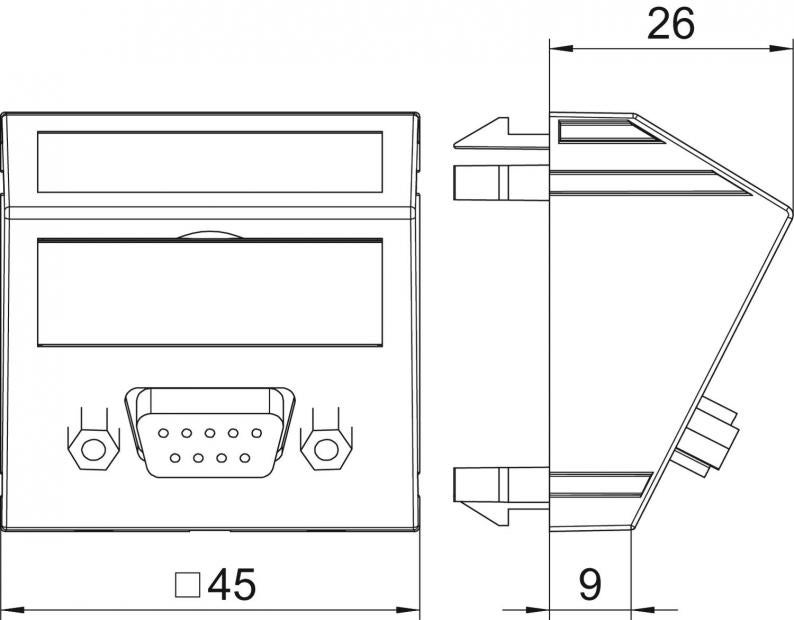

Dimensions

Width45 mm
Height45 mm

Technical data

Hinged coverno
Halogen-freeyes
Number of units1
Strain relief optionno
Protection ratingIP20
Support ringno
With dust protectionno
With printed labelno
Lamp-wire connectorno
Depth26 mm
Surface versionMatt
Transparentno
CombinationBasic element with central cover plate
UseD-Sub miniature
Labelling panelWith labelling panel
Fastening typeLock
ROHS-conformantyes
Dimension45x45mm
MaterialPolycarbonate
ColourPure white; RAL 9010
Product seriesModul 45® Multimedia

Environmental Data

0,1772 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,1772 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1772 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
MTS-DB9 S RW1
Item no.
6104646
Use
D-Sub miniature
Colour
Pure white; RAL 9010
MTS-DB9 S SWGR1
Item no.
6104649
Use
D-Sub miniature
Colour
Black-grey; RAL 7021
Outlet direction
Sloping
MTS-DB9 S AL1
Item no.
6104652
Use
D-Sub miniature
Colour
Aluminium painted
