Cover incl. turn buckles DD

Cover incl. turn buckles DD

Type WKLD 2050 DD
Item no. 6232408
EAN 4012196614820
Show all variants
Item no. / Type
Length
Width
Plate thickness

Smallest selling unit: 3 m

m

Description

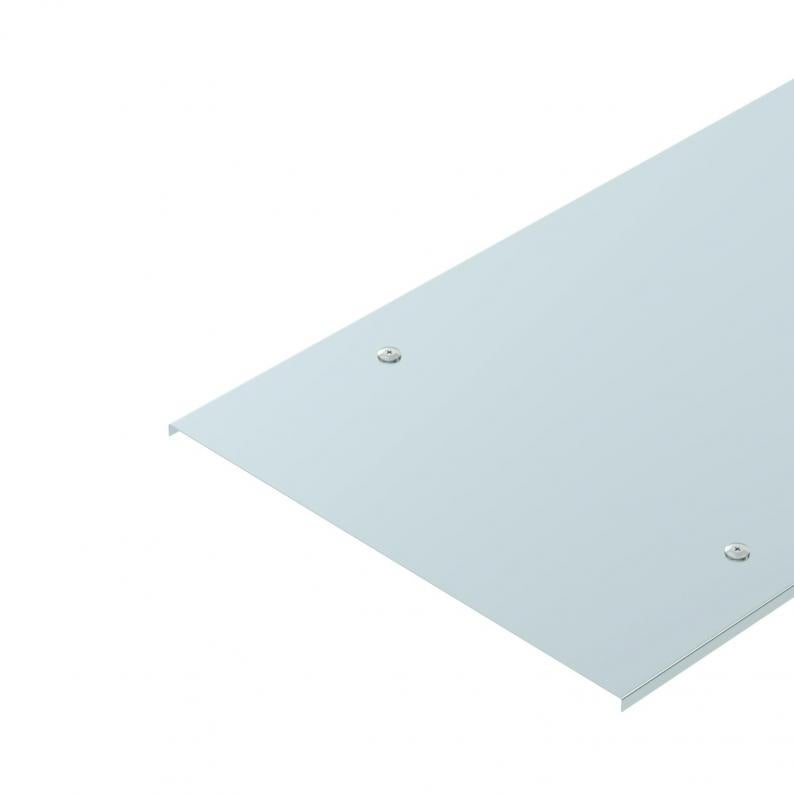

Cover for wide span ladders with the side height of 200 mm.
Take appropriate constructive protection measures if there are high wind speeds.

Transverse bead from 500 mm width.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Wide span cable ladder, side height 200 mm
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width500 mm
Height200 mm
Dimension L3000 mm
Dimension B500 mm
Dimension H15 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,5 mm
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayyes
Fastening typeSash lock
ROHS-conformantyes
Dimension500x3000
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Environmental Data

12,0081 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate12,0081 kg CO2e / 1 Meter
CO₂ Footprint (GWP)12,0081 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (3)
Product images (3)
3D data downloads (1)
Tender specifications (1)

Variants

Width
WKLD 2020 DD
Item no.
6232402
Length
3000
Width
200
Plate thickness
1,5
WKLD 2030 DD
Item no.
6232404
Length
3000
Width
300
Plate thickness
1,5
WKLD 2040 DD
Item no.
6232406
Length
3000
Width
400
Plate thickness
1,5
WKLD 2050 DD
Item no.
6232408
Length
3000
Width
500
Plate thickness
1,5
WKLD 2060 DD
Item no.
6232410
Length
3000
Width
600
Plate thickness
1,5
