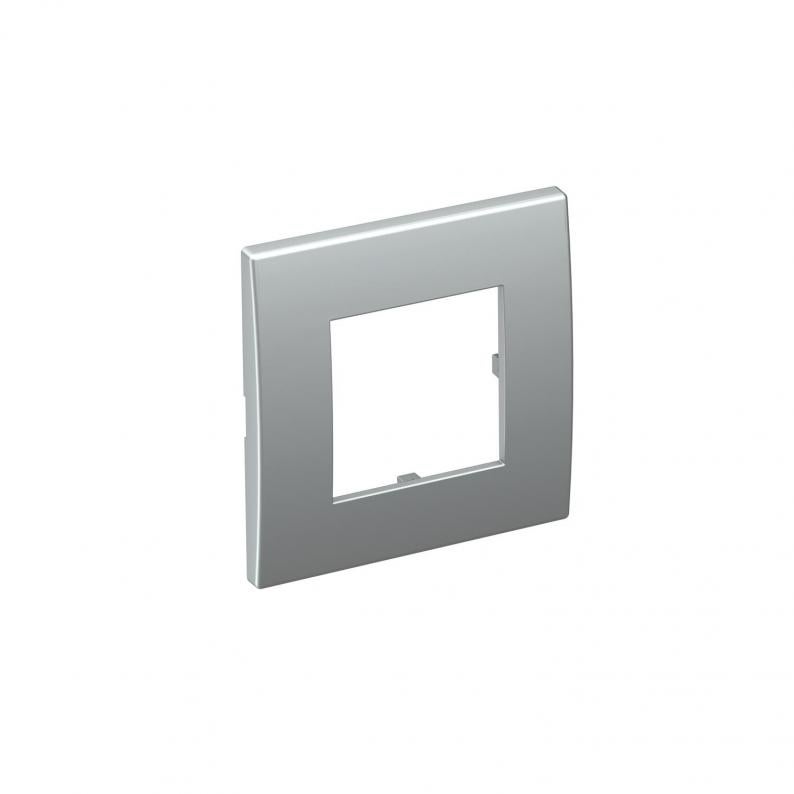

Cover frame AR45-F1, for accessory mounting box 71GD8-2, single

Cover frame AR45-F1, for accessory mounting box 71GD8-2, single

Type AR45-F1 AL
Item no. 6119326
EAN 4012195888802
Show all variants
Item no. / Type

Smallest selling unit: 1 piece

piece

Description

Front locking cover frame for Modul 45 devices, single, without labelling panel for horizontal and vertical device installation, for locking in accessory mounting box 71GD8-2.
For installation in Rapid 80 device installation trunking and ISS service poles.

  • CO₂ footprint (PCF)

Technical data

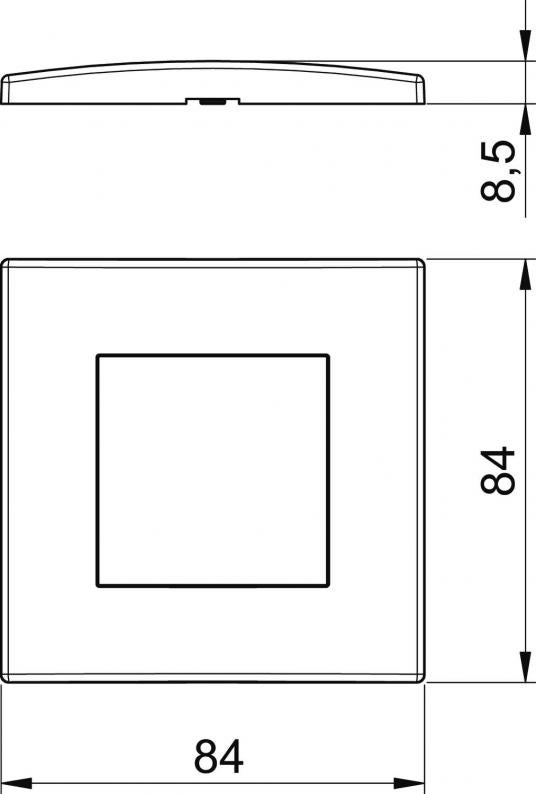

Dimensions

Width84 mm
Height84 mm

Technical data

Hinged coverno
Text field/inscription fieldno
Halogen-freeyes
Number of units1
Protection ratingOther
Suitable for flush-mounted installationsno
Suitable for underfloor duct socketno
Suitable for device installation ductsyes
Suitable for built-in installationsyes
Depth8,5 mm
Surface versionMatt
Mounting directionHorizontal and vertical
Einbaubreite45 mm
Installation height45 mm
Transparentno
Number of units, horizontal1
Anzahl der Einheiten vertikal1
Fastening typeClamp fastening
ROHS-conformantyes
Dimension84x84mm
MaterialPolycarbonate
ColourAluminium painted
Antibacterial treatmentno
With mounting frameno
Diameter opening0
Product seriesModul 45® Cover

Environmental Data

0,0196 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,0196 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,0196 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1
