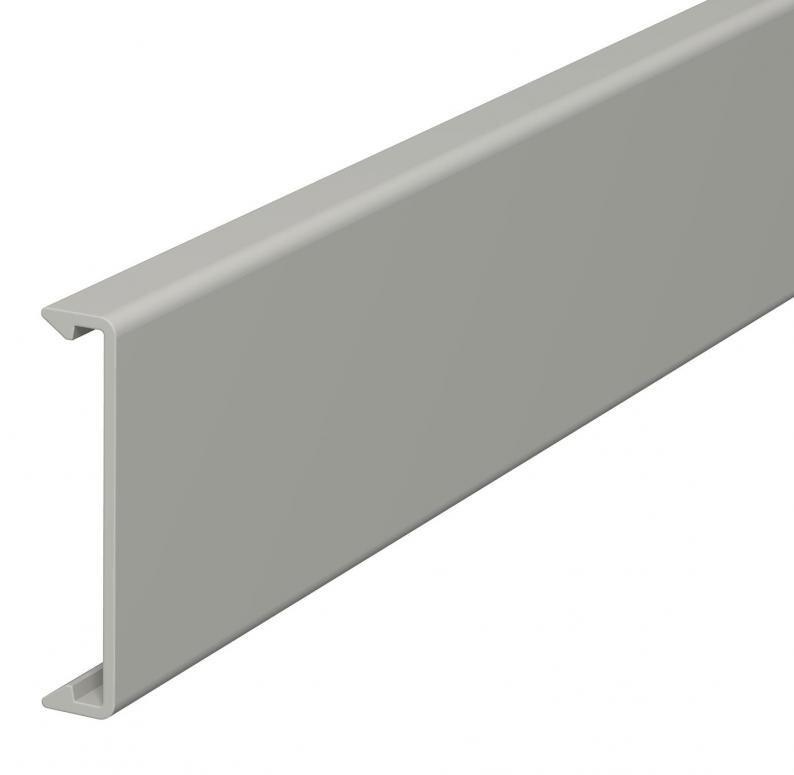

Cover for WDK trunking, trunking width 40 mm

Cover for WDK trunking, trunking width 40 mm

Type 2410 40GR
Item no. 6022669
EAN 4012196023110
Show all variants
Item no. / Type
Length
Colour

Smallest selling unit: 2 m

m

Description

Cover for closing the trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length2000 mm
Width40 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Protection ratingIP30
Protection rating IK codeIK04
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension40x2000mm
MaterialPolyvinylchloride
ColourStone grey; RAL 7030
Antibacterial treatmentno
Product seriesWDK

Environmental Data

0,2514 kg CO2e / 1 MeterCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,2514 kg CO2e / 1 Meter
CO₂ Footprint (GWP)0,2514 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitMetres
Declared Unit Quantity1

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (2)
Certificates (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Colour
2410 40GR
Item no.
6022669
Length
2000
Colour
Stone grey; RAL 7030
2410 40CW
Item no.
6027601
Length
2000
Colour
Cream; RAL 9001
2410 40RW
Item no.
6191568
Length
2000
Colour
Pure white; RAL 9010
