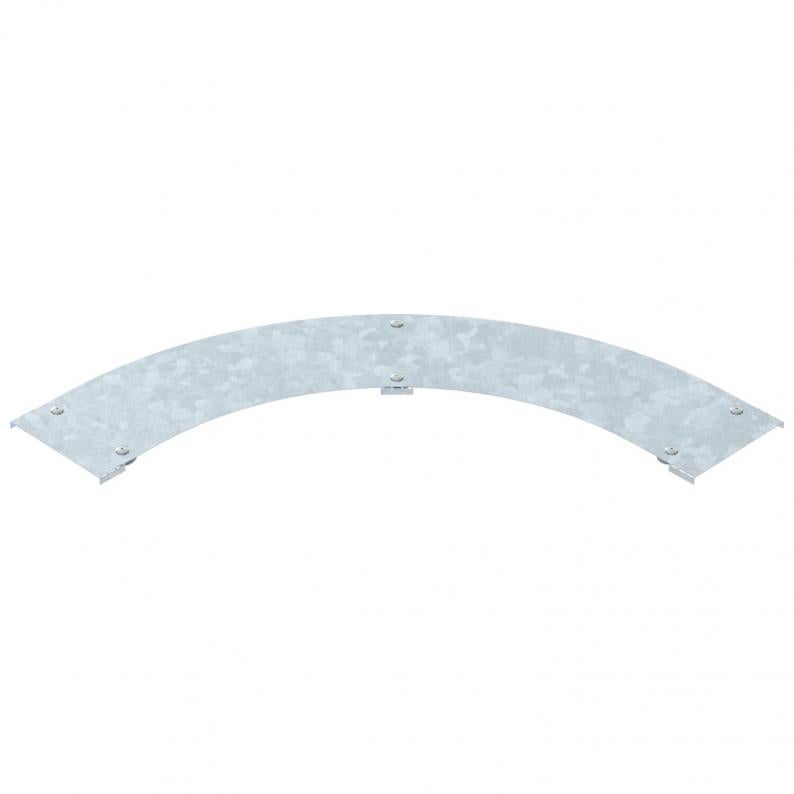

Cover for 90° bend FT

Cover for 90° bend FT

Type BD 90 200 R5 FT
Item no. 6239261
EAN 4012196882649
Show all variants
Item no. / Type
Width
Plate thickness

Smallest selling unit: 1 piece

piece

Description

Cover with turn buckles for covering 90° cable ladder bends.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width200 mm
Dimension B200 mm
Dimension R500 mm

Technical data

Maintain electrical functionsno
Rustproof steel, pickledno
Plate thickness1,5 mm
Bend (angle)90°
Suitable for mesh cable trayno
Suitable for cable ladderyes
Suitable for cable trayno
Hingedno
Change of directionHorizontal
Fastening typeSash lock
ROHS-conformantyes
DimensionB200mm
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Environmental Data

13,1404 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate13,1404 kg CO2e / 1 Piece
CO₂ Footprint (GWP)13,1404 kg CO₂e
Determination date of CO2 value2025-05-27T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Width
BD 90 200 R5 FT
Item no.
6239261
Width
200
Plate thickness
1,5
BD 90 300 R5 FT
Item no.
6239263
Width
300
Plate thickness
1,5
BD 90 400 R5 FT
Item no.
6239265
Width
400
Plate thickness
1,5
BD 90 500 R5 FT
Item no.
6239267
Width
500
Plate thickness
1,5
BD 90 600 R5 FT
Item no.
6239269
Width
600
Plate thickness
1,5
