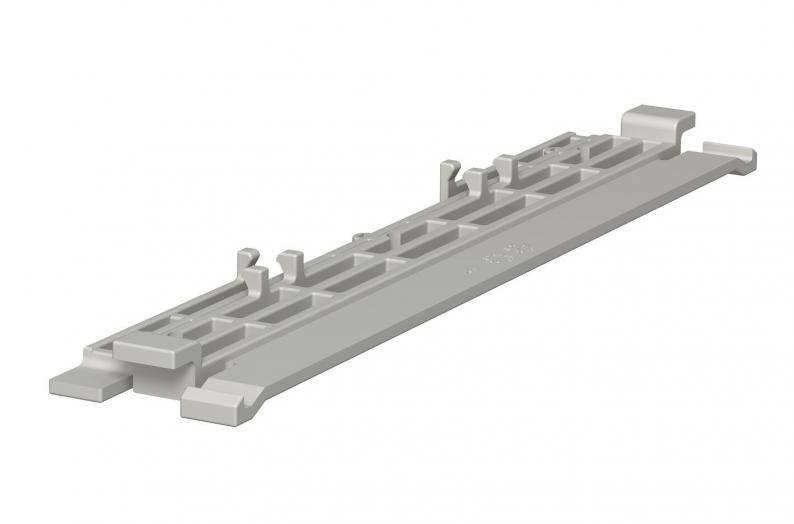

Cover clip for WDK trunking, trunking width 210 mm

Cover clip for WDK trunking, trunking width 210 mm

Type 2370 210
|
Item no. 6023576
|
EAN 4012196026357
Show all variants
Item no. / Type
6023576 / 2370 210

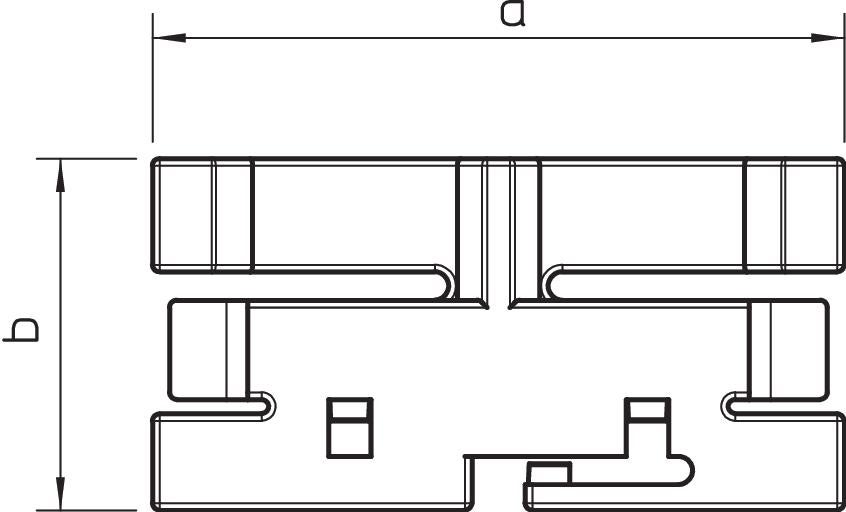

Dimension b
36 mm
Dimension a
197,2 mm

Smallest selling unit: 20 piece

piece

Description

Cover clip for better and easier laying of lines in the WDK trunking.
The cover clip is locked on one side and moved forward. This provides a 30° opening, meaning that cable routing is very simple.
From trunking widths of 110 mm, the cover clips can also be used as a mounting aid.

The cover fixing device can be moved along the entire length of the trunking.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length36 mm
Width197,2 mm
Dimension b36 mm
Dimension a197,2 mm

Technical data

Maintain electrical functionsno
Halogen-freeno
Self-extinguishingyes
Protection ratingIP30
With equipotential bondingno
Protection rating IK codeIK04
Fastening typeLockable
ROHS-conformantyes
Cover width210 mm
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension210mm
MaterialPolyvinylchloride
ColourLight grey; RAL 7035
Product seriesWDK

Environmental Data

0,1268 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate0,1268 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,1268 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
Tender specifications (1)

Variants

2370 210
Item no.
6023576
Dimension b
36
Dimension a
197,2
