Cover BRA OT FW 80 EL
Type BRA OT 80 FW EL
Item no. 6133268
EAN 4012196735334
Item no. / Type
6133268 / BRA OT 80 FW EL
Width
79 mm
Smallest selling unit: 1 piece
1piece
piece
Description

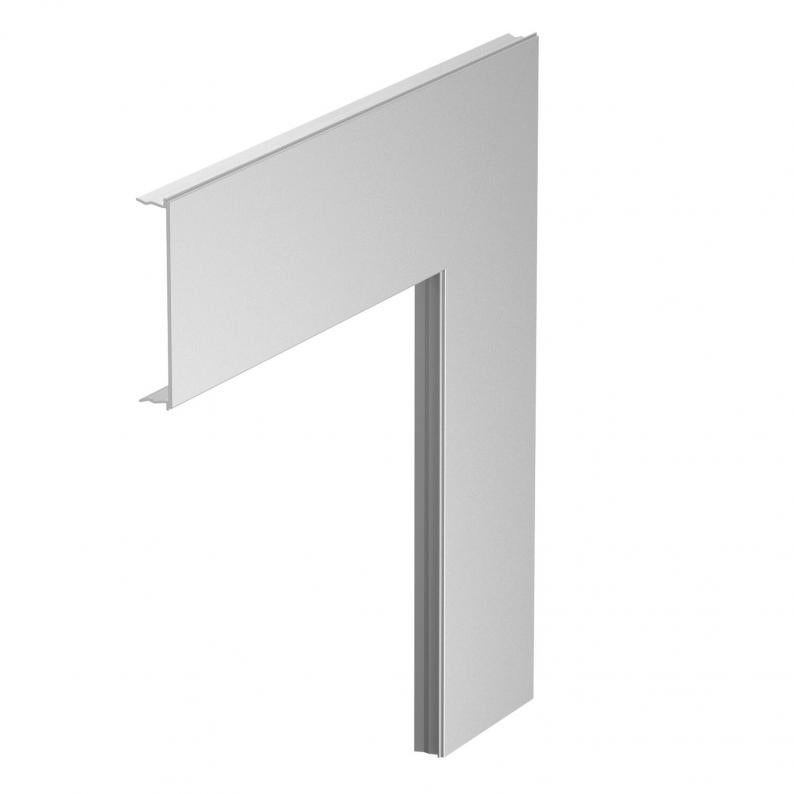

Cover for closing the flat angle of the Signa Style device installation trunking.
Technical data

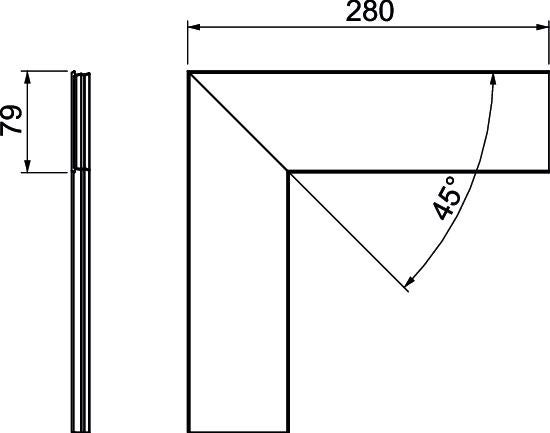

Dimensions
| Length | 280 mm |
|---|---|
| Width | 79 mm |
| Height | 14 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protective film | yes |
| Protection rating | IP30 |
| Cover mounting type | Internal |
| Protection rating IK code | IK07. |
| Version for | Smooth |
| ROHS-conformant | yes |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 14x80x280 |
| Surface | Anodised |
| Material | Aluminium |
| Colour | aluminium |
| Product series | Signa Style |
Environmental Data
2,5191 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5191 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 2,5191 kg CO₂e |
| Determination date of CO2 value | 2025-05-14T00:00:00.000+0200 |
| Declared Unit | Units |
| Declared Unit Quantity | 1 |
