Corner plate DD

Corner plate DD

Type LEB 25 DD
Item no. 6221216
EAN 4012196089116
Show all variants
Item no. / Type
Radius

Smallest selling unit: 1 piece

piece

Description

Corner plate to increase the radius and the cable supporting surface.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 45 mm
  • Cable ladder, side height 60 mm
  • Cable ladder, side height 110 mm
  • CO₂ footprint (PCF)

Technical data

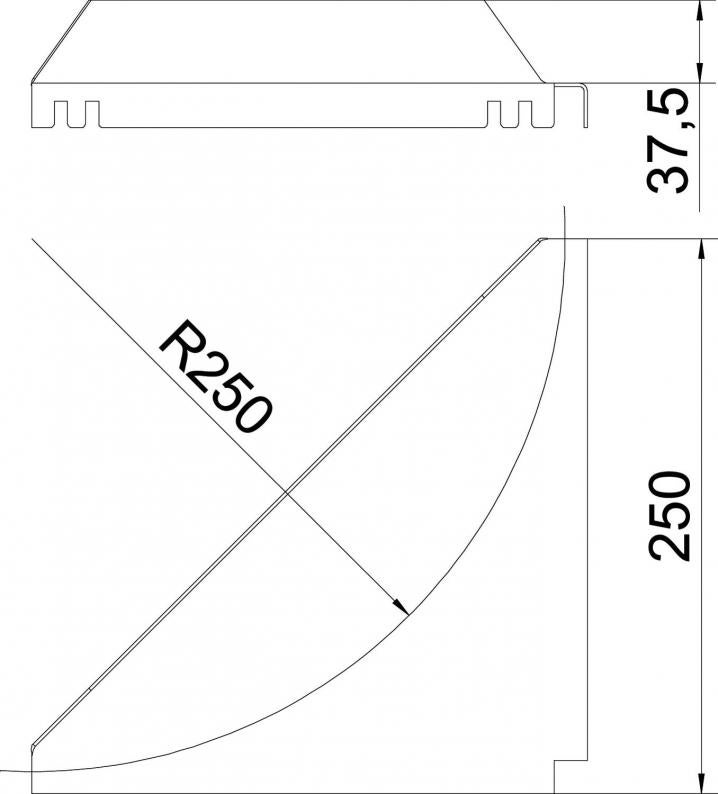

Dimensions

Height45 mm
Dimension a250 mm
Radius250 mm

Technical data

ROHS-conformantyes
DimensionR250mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
MaterialSteel
Colourzinc

Environmental Data

2,3091 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate2,3091 kg CO2e / 1 Piece
CO₂ Footprint (GWP)2,3091 kg CO₂e
Determination date of CO2 value2025-05-14T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Radius
LEB 25 DD
Item no.
6221216
Radius
250
LEB 50 DD
Item no.
6221259
Radius
500
