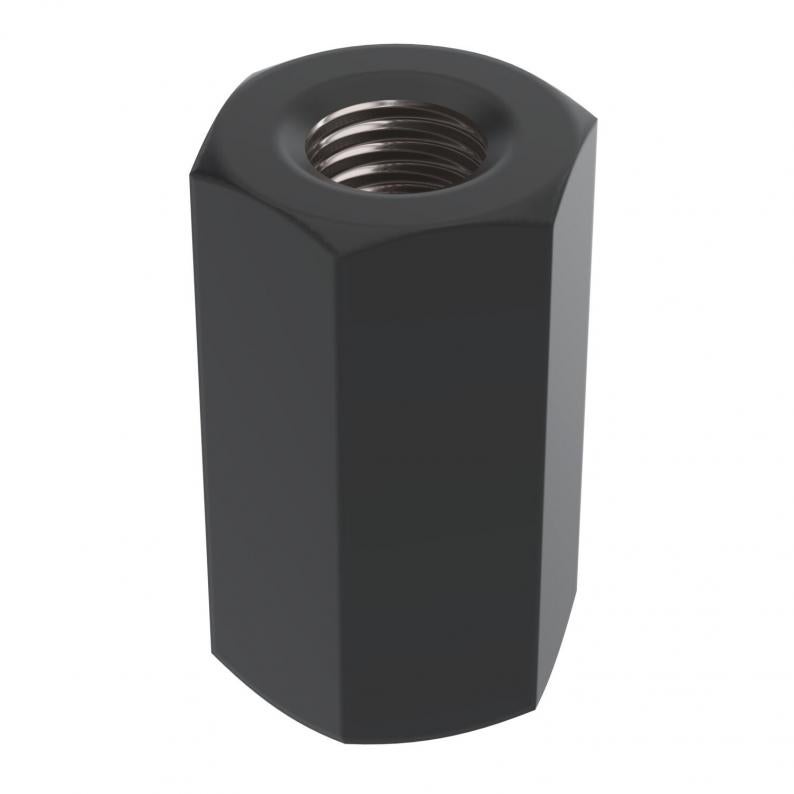

Connection sleeve
Type CSTR M10 G SW
Item no. 6410106
EAN 4012197490157
Item no. / Type
Length
Thread
WAF
Smallest selling unit: 50 piece
50piece
piece
Description
Connection sleeve with full-length internal thread.
Technical data

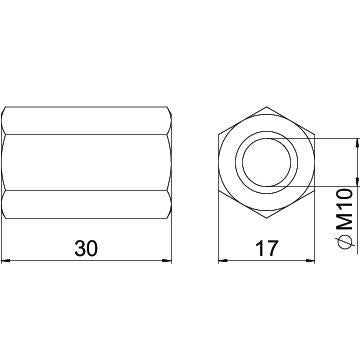

Dimensions
| Length | 30 mm |
|---|---|
| Dimension L | 30 mm |
Technical data
| Thread | M10 |
|---|---|
| Continuous thread | yes |
| Hexagonal | yes |
| WAF | 17 |
| Shape | Hexagonal |
| ROHS-conformant | yes |
| Dimension | M10x30mm |
| Surface | Electrogalvanised, black-passivated |
| Material | Steel |
| Colour | Black |
| Product series | BlackLine |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (1)
Variants
Type
Length
Thread
WAF
Item no.
CSTR M10 G SW
30
M10
17
6410106
CSTR M8 G
24
M8
13
6410081
CSTR M10 G
30
M10
17
6410103
CSTR M12 G
40
M12
19
6410111
Length
Thread
WAF
CSTR M10 G SW
Item no.
6410106
Length
30
Thread
M10
WAF
17
CSTR M8 G
Item no.
6410081
Length
24
Thread
M8
WAF
13
CSTR M10 G
Item no.
6410103
Length
30
Thread
M10
WAF
17
CSTR M12 G
Item no.
6410111
Length
40
Thread
M12
WAF
19
