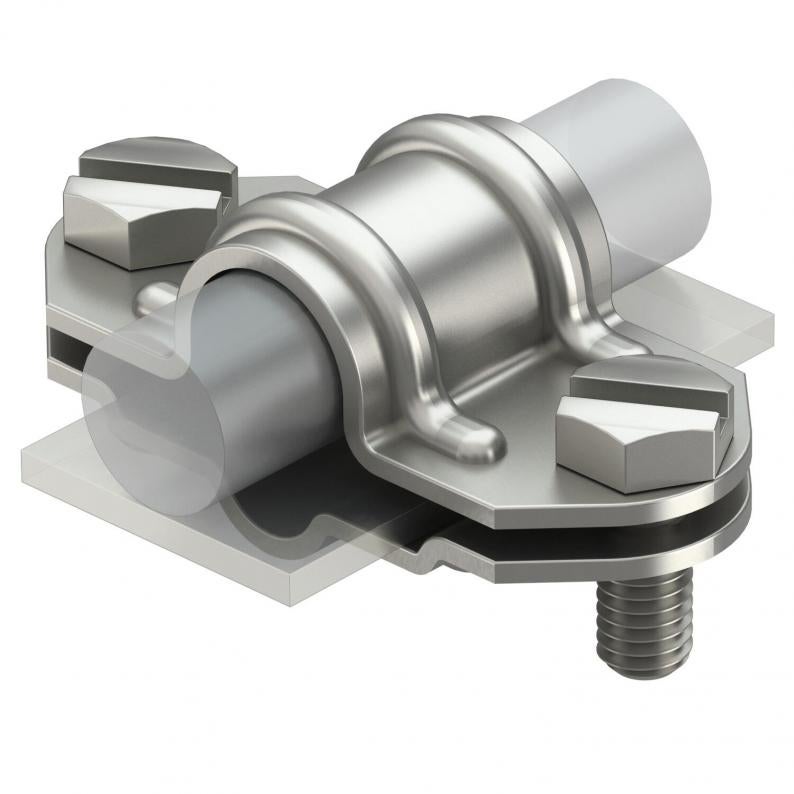

Connection clip for earth rod ø16
Type 226 V4A
|Item no. 5001610
|EAN 4012197460259
Item no. / Type
5001610 / 226 V4A
for earth rods
16 mm
Smallest selling unit: 10 piece
10piece
piece
Description
• Complies with the requirements according to VDE 0185-305-3 (IEC/ EN 62305-3)
• Suitable for connecting round conductor Rd 8-10 or flat conductor to FL 30 to earth rod ø16
• Mounted with 2 hexagonal bolts M8 x 20
• Suitable for connecting round conductor Rd 8-10 or flat conductor to FL 30 to earth rod ø16
• Mounted with 2 hexagonal bolts M8 x 20
Technical data
Dimensions
| Length | 70 mm |
|---|---|
| Width | 30 mm |
Technical data
| Earthing connection diameter | 16 mm |
|---|---|
| Suitable for round conductor diameters, min. | 8 mm |
| Suitable for round conductor diameters, max. | 10 mm |
| Type | Connection clip |
| ROHS-conformant | yes |
| for earth rods | 16 mm |
| Fit | Rd 8-10/FL30 x 16 mm |
| Clamping range, min. | 8 mm |
| Clamping range, max. | 10 mm |
Environmental Data
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
