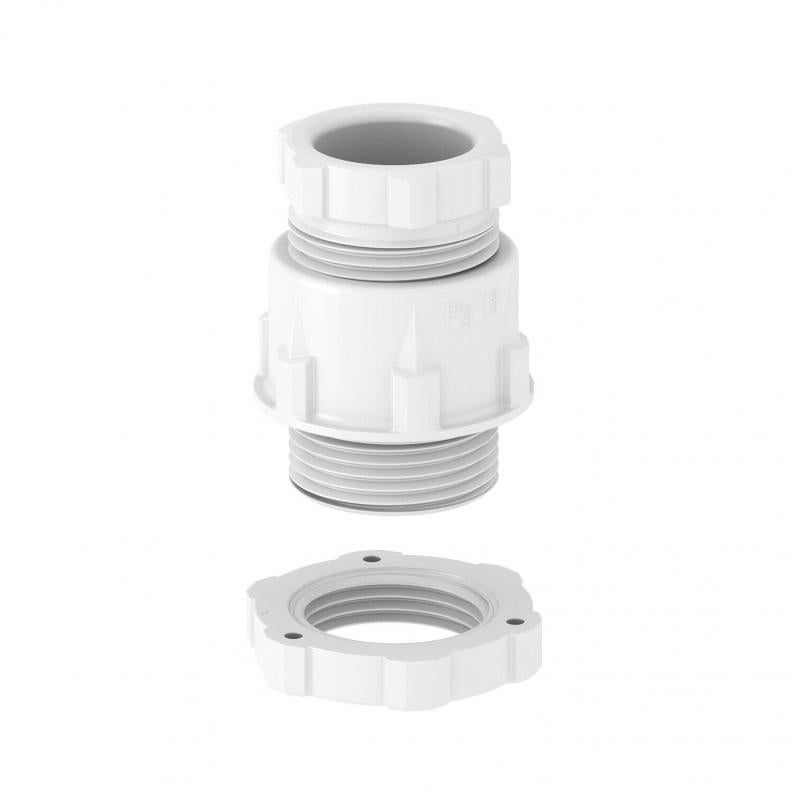

Cone cable gland, PG thread, light grey

Cone cable gland, PG thread, light grey

Type 106+PG48 MG LGR
Item no. 2038446
EAN 4012196688906
Show all variants
Item no. / Type
Thread

Smallest selling unit: 5 piece

piece

Description

Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring
Pg connection thread to DIN 40430

Protection rating: With connection thread sealing ring IP65, without connection thread sealing ring IP54.
Impact-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Protection rating IP 65
  • Thread Pg
  • CO₂ footprint (PCF)

Technical data

Dimensions

Dimension D270 mm
Dimension D350 mm
Dimension L min.8 mm
Dimension L max.48 mm
Dimension L114 mm
Dimension L227 mm
Dimension L39 mm
Dimension L418,5 mm
Dimension D445,5 mm
Dimension E378 mm

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionno
Protection ratingIP65
ThreadPg 48
For Ex zoneWithout
Thread typePG
Bend protectionno
With locknutno
Sealing insert, multipleno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Nominal thread size48
Sealing area D, min.37 mm
Sealing area D, max.40 mm
Dimension E1 (mm)70 mm
Dimension E250,3 mm
Version forStraight
ROHS-conformantyes
WAF 165 mm
WAF 260 mm
WAF 370 mm
Permitted temperature range, min.-20 °C
Permitted temperature range, max.65 °C
DimensionPG48
MaterialPolystyrene
ColourLight grey; RAL 7035
Product seriesV-TEC

Environmental Data

0,3449 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
CO2 Footprint (GWP) Cradle-to-Gate0,3449 kg CO2e / 1 Piece
CO₂ Footprint (GWP)0,3449 kg CO₂e
Determination date of CO2 value2025-05-21T00:00:00.000+0200
Declared UnitUnits
Declared Unit Quantity1

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (3)
Tender specifications (1)

Variants

Thread
106+PG09 MG LGR
Item no.
2038430
Thread
Pg 9
106+PG11 MG LGR
Item no.
2038432
Thread
Pg 11
106+PG13 MG LGR
Item no.
2038434
Thread
Pg 13,5
106+PG16 MG LGR
Item no.
2038436
Thread
Pg 16
106+PG21 MG LGR
Item no.
2038438
Thread
Pg 21
106+PG29 MG LGR
Item no.
2038440
Thread
Pg 29
106+PG36 MG LGR
Item no.
2038442
Thread
Pg 36
106+PG42 MG LGR
Item no.
2038444
Thread
Pg42
106+PG48 MG LGR
Item no.
2038446
Thread
Pg 48
